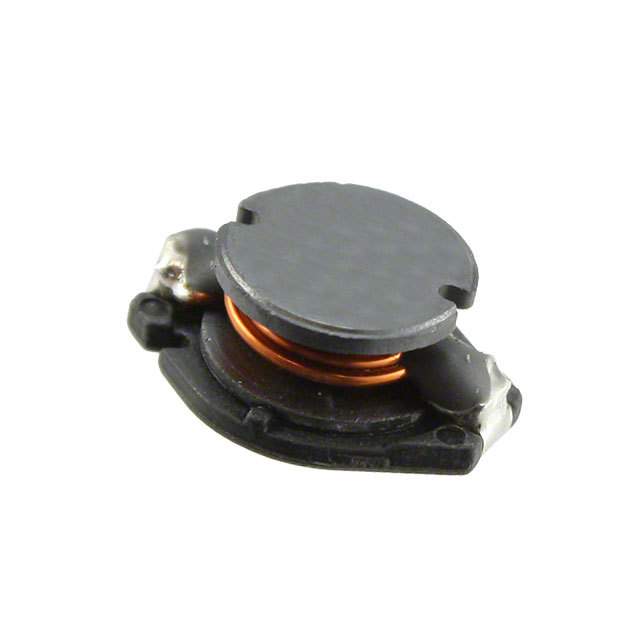

SDR1005-332KL

SMD功率电感器可在E6系列便携式通信设备 SMD Power Inductors Available in E6 series Portable communications equipment

无屏蔽 绕线 器 14 欧姆最大 非标准

得捷:
FIXED IND 3.3MH 160MA 14 OHM SMD

立创商城:
3.3mH ±10% 160mA 14Ω

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SDR1005-332KL surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes wirewound technology. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep. This SMD inductor has a maximum DC current of 160m A with a maximum resistance of 14 Ohm. It has a tolerance of 10%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1M Hz. It has an inductance of 3.3m H.

安富利:
Ind Power Wirewound 3.3mH 10% 1KHz 106Q-Factor Ferrite 160mA T/R

Chip1Stop:
Ind Power Wirewound 3.3mH 10% 1KHz 106Q-Factor Ferrite 160mA T/R

Verical:
Inductor Power Wirewound 3300uH 10% 1KHz 106Q-Factor Ferrite 0.16A 14Ohm DCR T/R

Online Components:
Inductor Power Wirewound 3.3mH 10% 1KHz 106Q-Factor Ferrite 160mA 14Ohm DCR T/R

Electro Sonic:
Inductor Power Wirewound 3.3mH 10% 1KHz 106Q-Factor Ferrite 160mA 14Ohm DCR T/R
