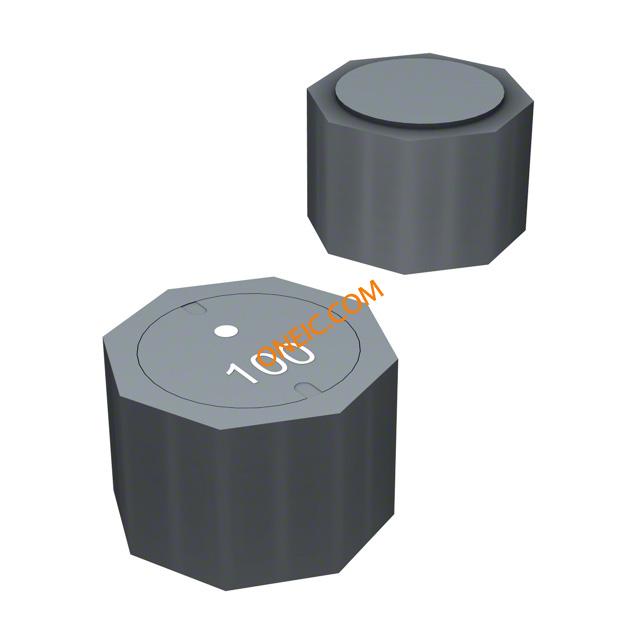

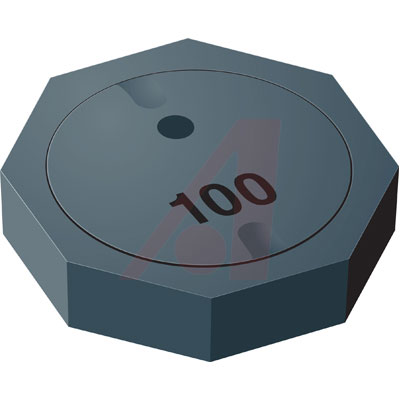

SRU1063-220Y

BOURNS  SRU1063-220Y.  电感, 屏蔽, 22UH, 3.2A, SMD

屏蔽 绕线 器 60 毫欧最大 非标准

得捷:
FIXED IND 22UH 3A 60 MOHM SMD

欧时:
Inductor Power shielded 22uH 30% 3A

立创商城:
22uH ±30% 3A 60mΩ

贸泽:
Fixed Inductors 22uH 30% SMD 1063

e络盟:
功率电感SMD, 22 µH, 3 A, 屏蔽, 3.2 A, SRU1063 Series, 10mm x 10mm x 6.5mm

艾睿:
Make any circuit look clean and compact using this power SRU1063-220Y surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 3 A with a maximum resistance of 60m Ohm. This product is 10.3 mm long, 6.8 mm tall and 10.3 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 10MTyp Hz. This device utilizes wirewound technology. It has an inductance of 22u H.

Allied Electronics:
Inductor; Power; Shielded; Wirewound; 22uH; 30%; 3A

安富利:
Ind Power Shielded Wirewound 22uH 30% 100KHz 15Q-Factor Ferrite 3A T/R

Chip1Stop:
Ind Power Shielded Wirewound 22uH 30% 100KHz 15Q-Factor Ferrite 3A T/R

Verical:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 15Q-Factor Ferrite 3A 0.06Ohm DCR T/R

Newark:
# BOURNS  SRU1063-220Y  Surface Mount Power Inductor, SRU1063 Series, 22 µH, 3 A, 3.2 A, Shielded, 0.06 ohm

MASTER:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 15Q-Factor Ferrite 3A 60mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 15Q-Factor Ferrite 3A 60mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 15Q-Factor Ferrite 3A 60mOhm DCR T/R

Win Source:
FIXED IND 22UH 3A 60 MOHM SMD
