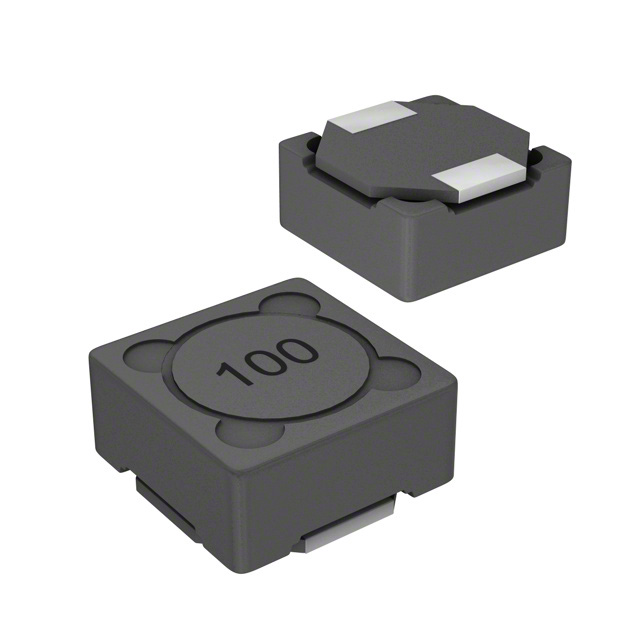

SRR1260-4R7Y

BOURNS  SRR1260-4R7Y  功率电感, 4.7uH 7A 30% 36.7MHz

Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 19Q-Factor Ferrite 6.8A 15.5mOhm DCR T/R

立创商城:
4.7uH ±30% 6.8A 15.5mΩ

得捷:
FIXED IND 4.7UH 6.8A 15.5MOHM SM

e络盟:
功率电感SMD, 4.7 µH, 6.8 A, 屏蔽, 7 A, SRR1260 Series, 12.5mm x 12.5mm x 6mm

艾睿:
Make any circuit look clean and compact using this power SRR1260-4R7Y surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 36.7MTyp Hz. This product is 12.8 mm long, 6.5 mm tall and 12.8 mm deep. This SMD inductor has a maximum DC current of 6.8 A with a maximum resistance of 15.5m Ohm. It has an inductance of 4.7u H. This device is made with wirewound technology.

安富利:
Ind Power Shielded Wirewound 4.7uH 30% 100KHz 19Q-Factor Ferrite 6.8A T/R

Verical:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 19Q-Factor Ferrite 6.8A 0.0155Ohm DCR T/R

Newark:
# BOURNS  SRR1260-4R7Y  Surface Mount Power Inductor, SRR1260 Series, 4.7 µH, 6.8 A, 7 A, Shielded, 0.0155 ohm

MASTER:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 19Q-Factor Ferrite 6.8A 15.5mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 19Q-Factor Ferrite 6.8A 15.5mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 19Q-Factor Ferrite 6.8A 15.5mOhm DCR T/R
