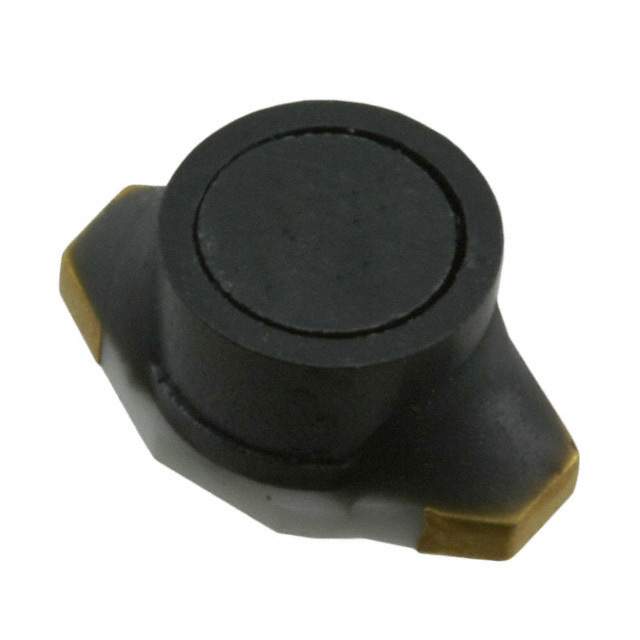

BOURNS SRR6603-1R5ML 表面贴装功率电感器, SRR6603系列, 1.5 µH, ± 20%, 屏蔽, 0.045 ohm, 2.8 A
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 30Q-Factor Ferrite 2.8A 45mOhm DCR T/R
得捷:
FIXED IND 1.5UH 2.8A 45 MOHM SMD
贸泽:
Fixed Inductors 1.5uH 20% SMD 6603
e络盟:
功率电感SMD, 1.5 µH, 2.8 A, 屏蔽, 930 mA, SRR6603系列, 6.6mm x 4.4mm x 3mm
艾睿:
Make any circuit look clean and compact using this power SRR6603-1R5ML surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 125MTyp Hz. It has an inductance of 1.5u H. This device is made with wirewound technology. It has a tolerance of 20%. This product is 6.6 mm long, 3 mm tall and 4.4 mm deep. This SMD inductor has a maximum DC current of 2.8 A with a maximum resistance of 45m Ohm.
安富利:
Ind Power Shielded Wirewound 1.5uH 20% 100KHz 30Q-Factor Ferrite 2.8A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 30Q-Factor Ferrite 2.8A 45mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 30Q-Factor Ferrite 2.8A 0.045Ohm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 30Q-Factor Ferrite 2.8A 45mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 1.5uH 20% 100KHz 30Q-Factor Ferrite 2.8A 45mOhm DCR T/R
额定电流 2.8 A
容差 ±20 %
电感 1.5 µH
自谐频率 125 MHz
Q值 30.0
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤45 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.045 Ω
安装方式 Surface Mount
引脚数 2
封装 6.6mm x 4.4mm x 3mm
长度 6.6 mm
宽度 4.4 mm
高度 3 mm
封装 6.6mm x 4.4mm x 3mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRR6603-1R5ML Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SRE6603-1R5M 伯恩斯 | 类似代替 | SRR6603-1R5ML和SRE6603-1R5M的区别 |
PM1608S-1R5M 伯恩斯 | 功能相似 | SRR6603-1R5ML和PM1608S-1R5M的区别 |
HM71S-06031R5LFTR Magnetics | 功能相似 | SRR6603-1R5ML和HM71S-06031R5LFTR的区别 |
