4位同步加/减计数器双时钟有明确的 4-BIT SYNCHRONOUS UP/DOWN COUNTERS DUAL CLOCK WITH CLEAR
The HC193 devices are 4-bit synchronous, reversible, up/down binary counters. Synchronous operation is provided by having all flip-flops clocked simultaneously so that the outputs change coincidentally with each other when so instructed by the steering logic. This mode of operation eliminates the output counting spikes normally associated with asynchronous ripple-clock counters.
The outputs of the four flip-flops are triggered on a low-to-high-level transition of either count clock input UP or DOWN. The direction of counting is determined by which count input is pulsed while the other count input is high.
All four counters are fully programmable; that is, each output may be preset to either level by placing a low on the load LOAD\ input and entering the desired data at the data inputs. The output changes to agree with the data inputs independently of the count pulses. This feature allows the counters to be used as modulo-N dividers simply by modifying the count length with the preset inputs.
A clear CLR input has been provided that forces all outputs to the low level when a high level is applied. The clear function is independent of the count and LOAD\ inputs.
These counters were designed to be cascaded without the need for external circuitry. The borrow BO\ output produces a low-level pulse while the count is zero all outputs low and DOWN is low. Similarly, the carry CO\ output produces a low-level pulse while the count is maximum 9 or 15, and UP is low. The counters then can be cascaded easily by feeding BO\ and CO\ to DOWN and UP, respectively, of the succeeding counter.
电源电压DC 2.00V ~ 6.00V
输出接口数 4
时钟频率 60.0 MHz
位数 4
电压波节 6.00 V, 5.00 V, 2.00 V
输出电流驱动 -1.00 mA
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
安装方式 Surface Mount

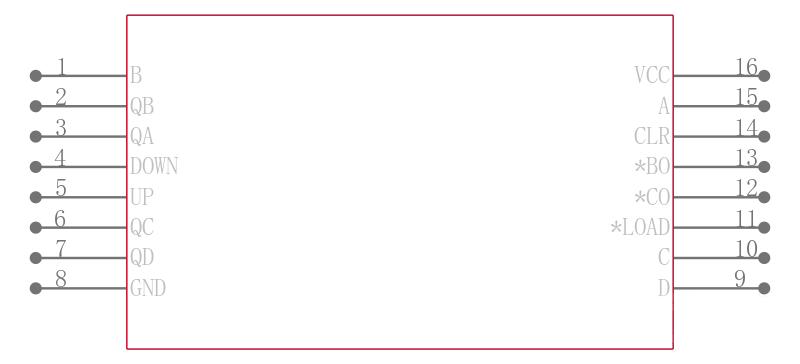

引脚数 16

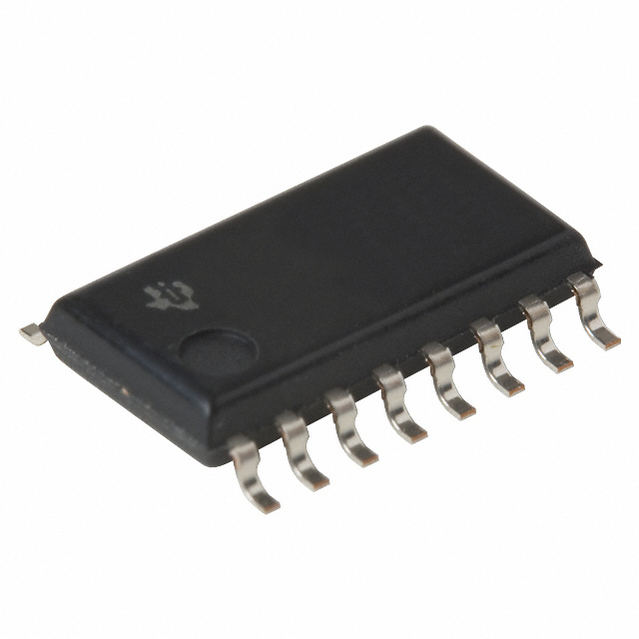

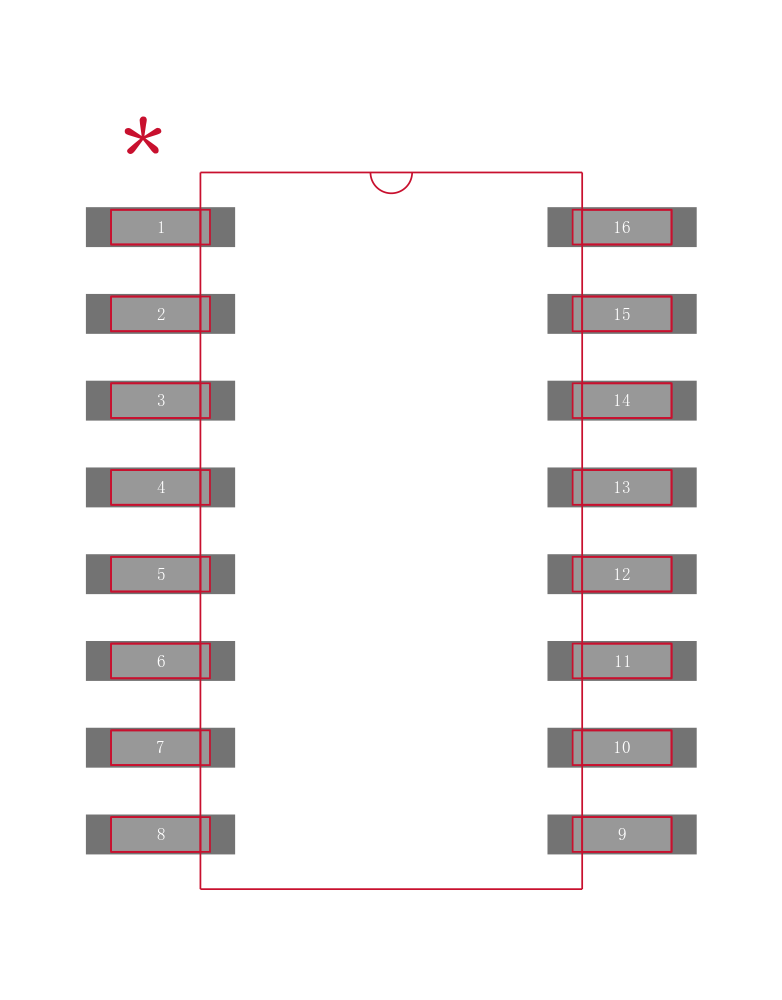

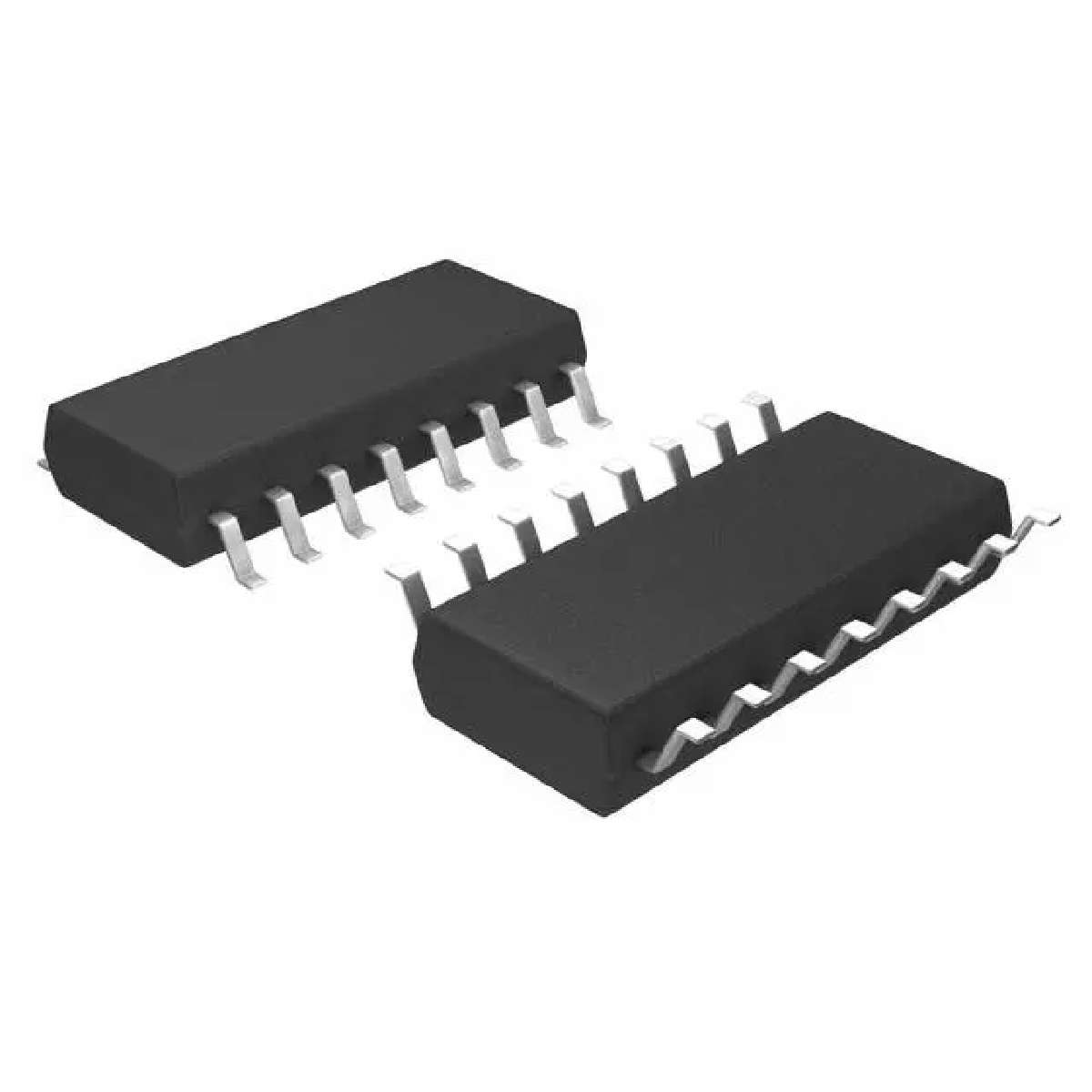

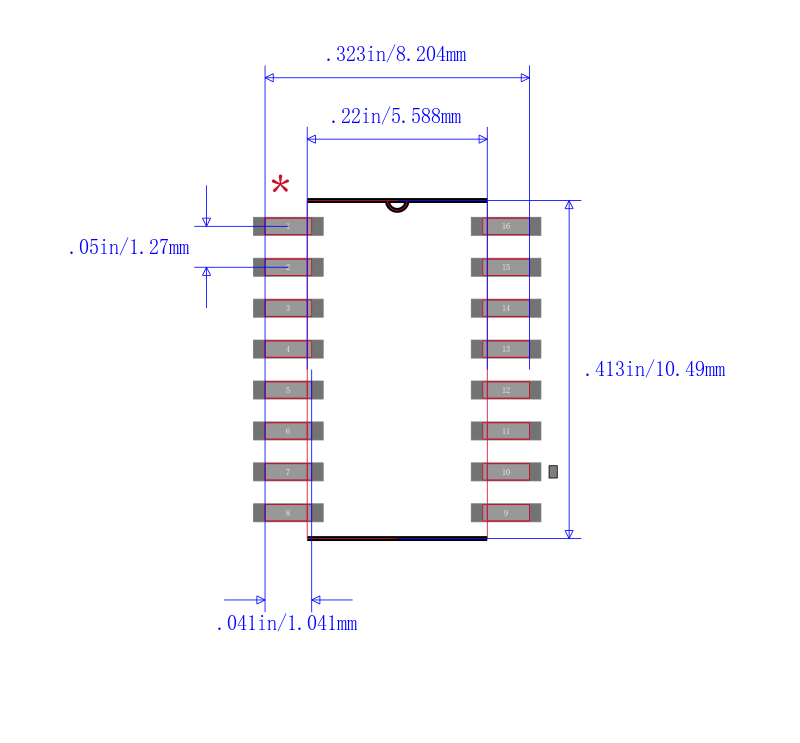

封装 SOP-16
封装 SOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC193NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC193DR 德州仪器 | 完全替代 | SN74HC193NSR和SN74HC193DR的区别 |
SN74HC193NE4 德州仪器 | 完全替代 | SN74HC193NSR和SN74HC193NE4的区别 |
SN74HC193PWR 德州仪器 | 完全替代 | SN74HC193NSR和SN74HC193PWR的区别 |
