可配置电压转换和3态输出的32位双电源总线收发器 32-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS
The Texas Instruments level translator can control and allow the proper input voltage into your electronic circuits. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
电源电压DC 1.20V min
输出电流 12 mA
电路数 4
通道数 32
位数 32
传送延迟时间 2.70 ns
输入数 32
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 8
电源电压 1.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 96

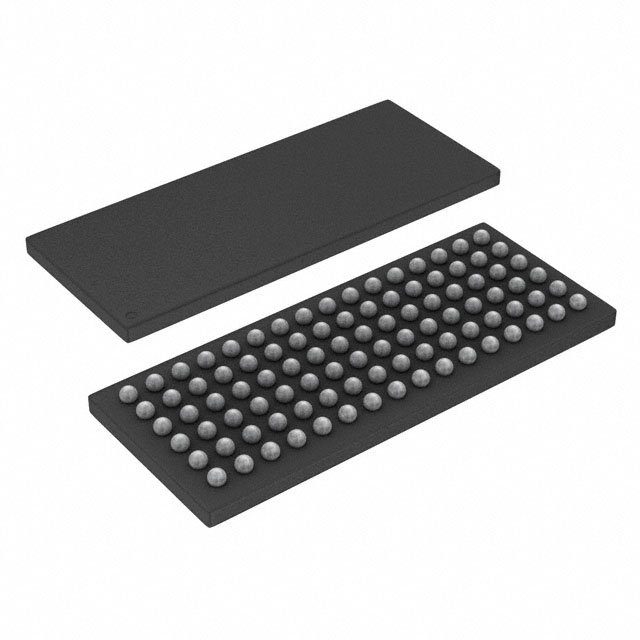

封装 BGA-96
高度 4.05 mm
封装 BGA-96
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AVC32T245ZRLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AVC32T245GKER 德州仪器 | 类似代替 | SN74AVC32T245ZRLR和SN74AVC32T245GKER的区别 |
