SN64BCT757N

八路缓冲器/驱动器，集电极开路输出 OCTAL BUFFER/DRIVER WITH OPEN-COLLECTOR OUTPUTS

description

This octal buffer and line driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device provides complementary output-enable OE and OE inputs and noninverting outputs.

The SN64BCT757 is characterized for operation from –40°C to 85°C and 0°C to 70°C.

BiCMOS Design Significantly Reduces ICCZ

ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015; Exceeds 200 V Using Machine Model C = 200 pF, R = 0

High-Impedance State During Power Up and Power Down

Open-Collector Outputs Drive Bus Lines or Buffer-Memory Address Registers

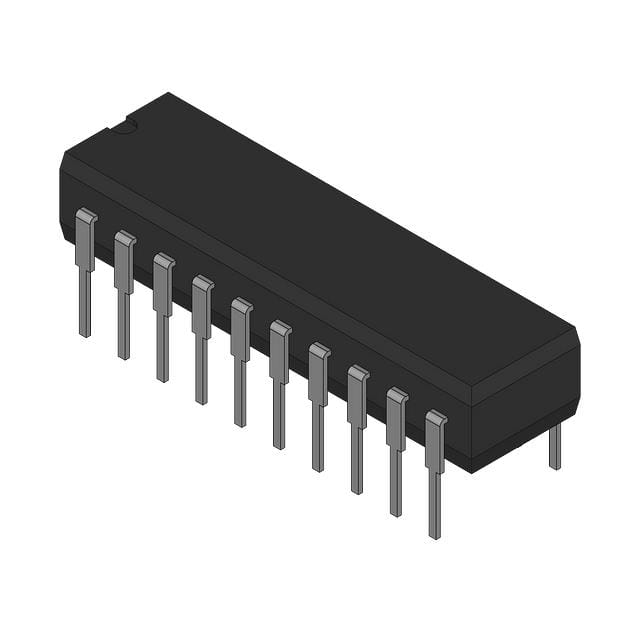

Package Options Include Plastic Small-Outline DW Packages and Standard Plastic and Ceramic 300-mil DIPs N
