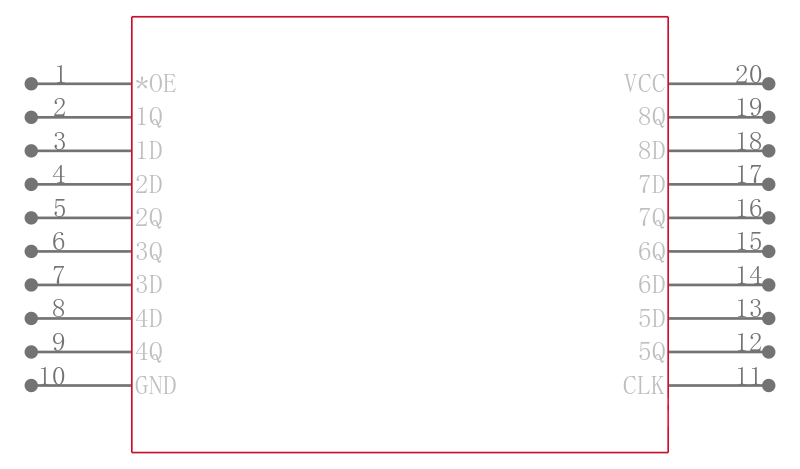

SN74BCT374DWR

八路边沿触发D型触发器具有​​三态输出 OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS

description/ordering information

These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

The eight flip-flops of the ’BCT374 devices are edge-triggered D-type flip-flops. On the positive transition of the clock CLK input, the Q outputs are set to the logic levels that were set up at the data D inputs.

• Operating Voltage Range of 4.5 V to 5.5 V

• State-of-the-Art BiCMOS Design Significantly Reduces ICCZ

• Full Parallel Access for Loading

• Buffered Control Inputs

• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A
