110° 漫射 2 / 9 mcd 2/2.2 V 直角 双色 LED

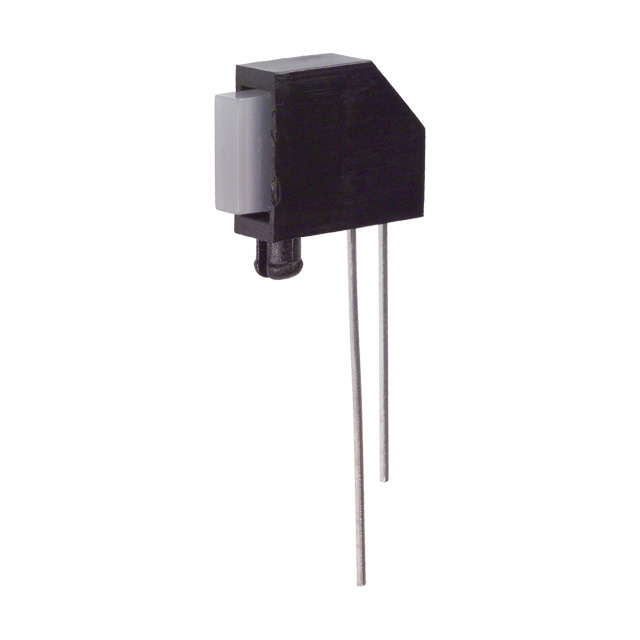

LED Circuit Board Indicator Bar - Single, SIP Green, Red Diffused, White 2.2V Green, 2V Red 20mA Through Hole, Right Angle
得捷:
LED 2.5X7MM RA RED/GRN DIFFPCMT
贸泽:
LED 电路板指示器 2.5mmX7mm red/green
艾睿:
LED Bi-Color Green/Red 565nm/695nm 2-Pin
Electro Sonic:
LED Bi-Color Green/Red 565nm/695nm 2-Pin
Win Source:
LED 2.5X7MM RA RED/GRN DIFFPCMT / LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green, Red Diffused, White 2.2V Green, 2V Red 20mA Rectangle with Flat Top 7.00mm x 2.50mm Through Hole, Right Angle
正向电压 2.20 V
波长 695 nm, 565 nm
发光强度 9.00 mcd
视角 110°
透镜样式 Diffused
峰值波长 565nm, 695nm
正向电流 20 mA
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 2.2 V
安装方式 Through Hole
引脚数 2
长度 13.9 mm
宽度 3.60 mm
高度 10.2 mm
颜色 Green, Red
外观颜色 White
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
