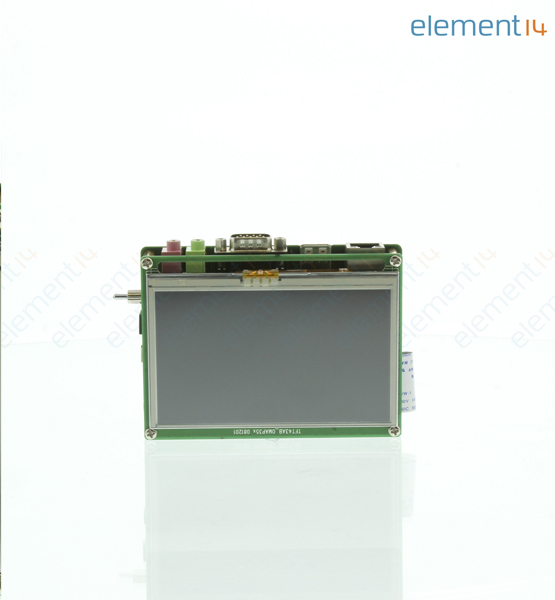

SBC8018 WITH 4.3"LCD

单板计算机, AM1808 ARM9 MCU, 4.3英寸LCD, 音频/视频接口

是一个compact, 低成本 with 高性能控制ler电路板设计ed with 4.3英寸LCD显示器. It is based on TI"s AM1808 ARM9 低功率application处理器 which enables OEMs和ODMs to quickly bring to market设备featuring robust 操作系统 support, rich user 接口s,和high 处理性能 life through the maximum flexibility of a fully集成 mixed处理器 solution. The SBC8018 Single电路板 Computer takes full features of the AM1808 和has 128MB Mobile DDR SDRAM和128MB NAND闪存 on电路板. It has exposed many other 硬件 接口s 包括串行端口, LCD/TSP, USB Host/OTG,以太网, 音频, SATA, two 照相机, TF卡等. It also has one 14引脚JTAG 接口which can be used with XDS100v2 emulator. The电路板是一个ready to run solution which is provided with Linux 2.6.33和WinCE 6.0 BSP.

.

375MHz TI AM1808 ARM926微处理器

.

板载128M字节 DDR SDRAM + 128M字节 NAND闪存

.

UART, USB, 以太网, LCD/TSP, SATA, 摄像机, 音频, TF, JTAG

.

可选 Wi-Fi, 摄像机和3G模块

.

可运行Linux2.6.33和WinCE 6.0 OS
