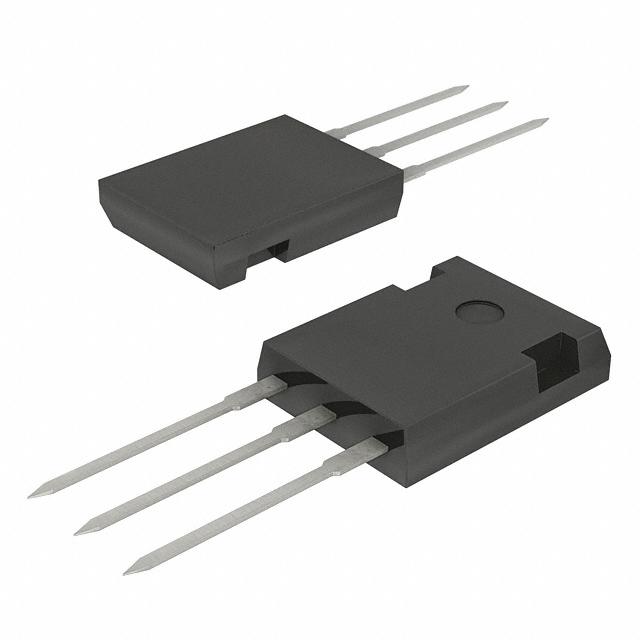

VISHAY SIHG47N60E-E3 功率场效应管, MOSFET, N沟道, 47 A, 600 V, 0.053 ohm, 10 V, 2.5 V
The is a 650V N-channel enhancement-mode Power MOSFET with single configuration. It is suitable for SMPS, server, telecom and PFC power supplies, solar, motor drives, induction heating, renewable energy and welding applications.
- .
- Low figure-of-meritFOM RON x Qg
- .
- Low input capacitance CISS
- .
- Reduced switching and conduction losses
- .
- Ultra low gate charge
- .
- Avalanche energy rated
针脚数 3
漏源极电阻 0.053 Ω
极性 N-Channel
耗散功率 357 W
阈值电压 2.5 V
漏源极电压Vds 600 V
工作温度Max 150 ℃
安装方式 Through Hole
引脚数 3
封装 TO-247
封装 TO-247
包装方式 Tube
制造应用 Computers & Computer Peripherals, Portable Devices, Alternative Energy, Industrial, Motor Drive & Control, Lighting, Communications & Networking, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SIHG47N60E-E3 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SIHG47N60E-GE3 威世 | 完全替代 | SIHG47N60E-E3和SIHG47N60E-GE3的区别 |
