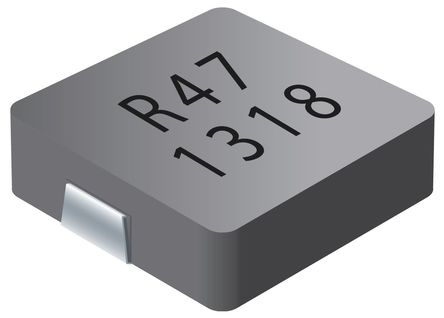

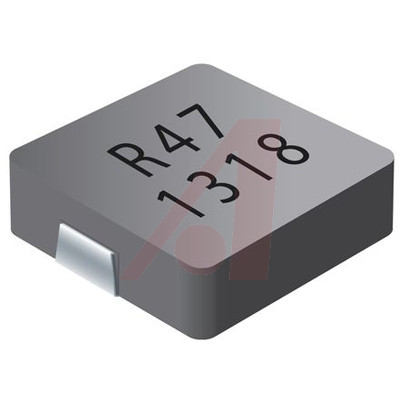

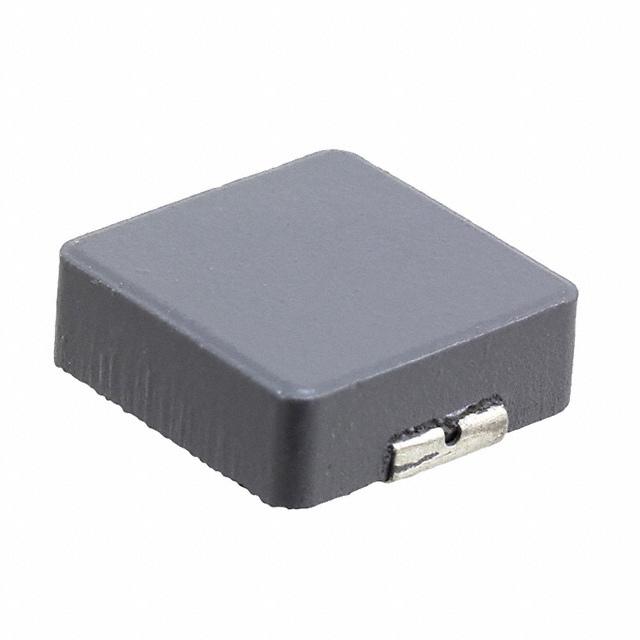

SRP1245A-1R8M

BOURNS  SRP1245A-1R8M  表面贴装功率电感器, AEC-Q200 SRP1245A系列, 1.8 µH, ± 20%, 屏蔽, 4900 µohm, 21 A

SRP1245A 系列磁性屏蔽式功率器

Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。

**特点和优势：**

SRP1245A 系列电感器具有屏蔽结构

羰基粉芯

高饱和电流

电感范围 0.33 μH 至 18 μH

符合 AEC-Q200

符合 RoHS 标准且无卤

应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、

直流-直流转换器和电源

得捷:
FIXED IND 1.8UH 21A 4.9 MOHM SMD

立创商城:
1.8uH ±20% 21A 4.9mΩ

欧时:
### SRP1245A 系列磁性屏蔽式功率电感器Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。 **特点和优势：** SRP1245A 系列电感器具有屏蔽结构 羰基粉芯 高饱和电流 电感范围 0.33 μH 至 18 μH 符合 AEC-Q200 符合 RoHS 标准且无卤 应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、 直流-直流转换器和电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 1.8 µH, 21 A, 屏蔽, 40 A, SRP1245A 系列, 13.5mm x 12.5mm x 4.8mm

艾睿:
Use this power SRP1245A-1R8M surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 27MTyp Hz. It has an inductance of 1.8u H. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 21 A with a maximum resistance of 4.9m Ohm. This product is 14 mm long, 5 mm tall and 12.8 mm deep. It has a tolerance of 20%.

Allied Electronics:
Inductor; Shielded Power; AEC-Q200; 1.8uH 20% SMT 1245

安富利:
Ind Power Shielded 1.8uH 20% 100KHz Carbonyl Powder 21A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 1.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 21A 4.9mOhm DCR Automotive T/R

Verical:
Inductor Power Shielded Wirewound 1.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 21A 0.0049Ohm DCR Automotive T/R

Newark:
# BOURNS  SRP1245A-1R8M  Surface Mount Power Inductor, SRP1245A Series, 1.8 µH, 21 A, 40 A, Shielded, 4900 µohm

Online Components:
Inductor Power Shielded Wirewound 1.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 21A 4.9mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 1.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 21A 0.0049Ohm DCR Automotive T/R
