SLF7045T-150M1R5-H

TDK  SLF7045T-150M1R5-H  表面贴装功率电感器, SLF系列, 15 µH, ± 20%, 绕线, 0.0816 ohm, 1.46 A

固定器

得捷:
FIXED IND 15UH 1.5A 81.6MOHM SMD

立创商城:
15uH ±20% 1.46A 68mΩ

艾睿:

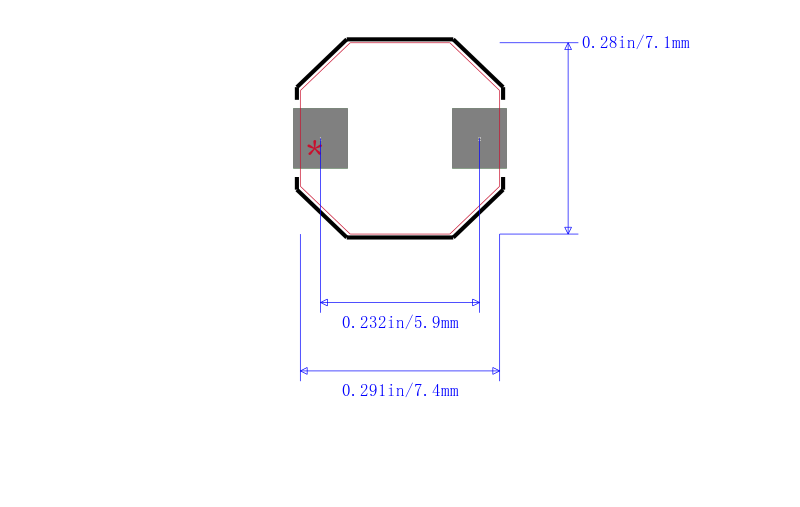

This power SLF7045T-150M1R5-H surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 20%. It has an inductance of 15u H. This SMD inductor has a maximum DC current of 1.46Typ A with a maximum resistance of 81.6m Ohm. This device is made with wirewound technology. Its test frequency is 100K Hz. This product is 7.2 mm long, 4.8 mm tall and 7.2 mm deep.

安富利:
Ind Power Shielded Wirewound 15uH 20% 100KHz Ferrite 1.46A Blister Plastic T/R

Chip1Stop:
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 1.46A 81.6mOhm DCR Automotive T/R

Verical:
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 1.46A 0.0816Ohm DCR Automotive T/R

Newark:
Surface Mount Power Inductor, SLF Series, 15 H, 20%, Wirewound, 0.0816 ohm, 1.46 A

儒卓力:
**SLF7045T 15uH 1460mA 20% WWT **

Electro Sonic:
Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 1.46A 81.6mOhm DCR Automotive T/R

Win Source:
15μH Shielded Wirewound Inductor 1.5A 81.6 mOhm Max Nonstandard
