SGV 80

LUMBERG  SGV 80  连接器, DIN音频/视频, 插头, 8 触点, 面板安装, 塑料主体, 镀银触芯

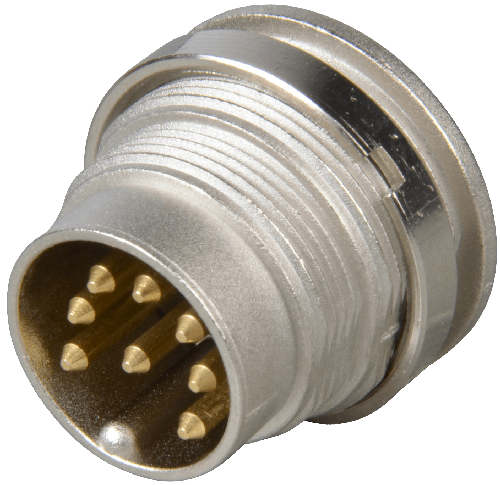

The is a 8-pole Chassis Plug with threaded joint. This rear mounting plug has GF polyamide insulating body, pre-copper and nickel-plated die-cast zinc housing, pre-nickeled and gold-plated CuZn contact pins. It mates with KV and WKV sockets.

.

UL94V-0 Body flammability rating

.

IP40 Protection

e络盟:
连接器, DIN音频/视频, 8 触点, 插头, 面板安装, 焊接, 镀银触芯, 塑料主体

Allied Electronics:
CHASSIS PLUG ACC. TO IEC 60130-9, IP 40, WITH THREADED JOINT AND SOLDER TERMINAL

TME:
Connector: M16; male; for panel mounting, front side nut, screwed

Newark:
# LUMBERG  SGV 80  DIN Audio / Video Connector, Plug, 8, Panel Mount, Plastic Body, Silver Plated Contacts
