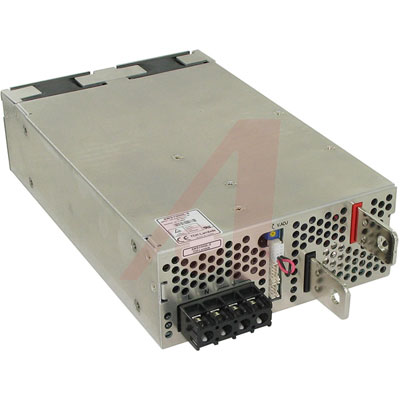

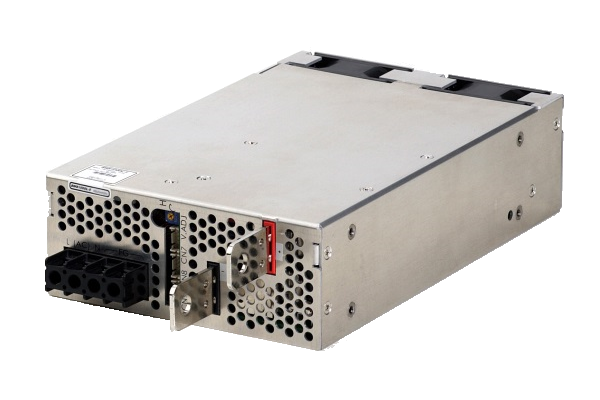

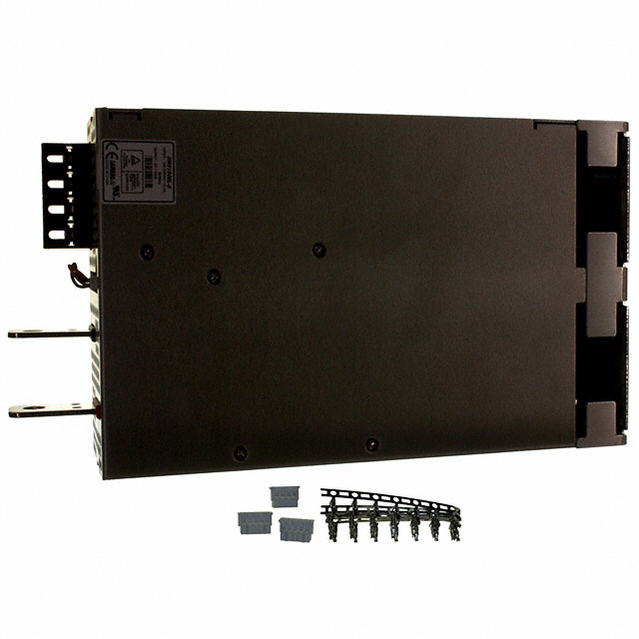

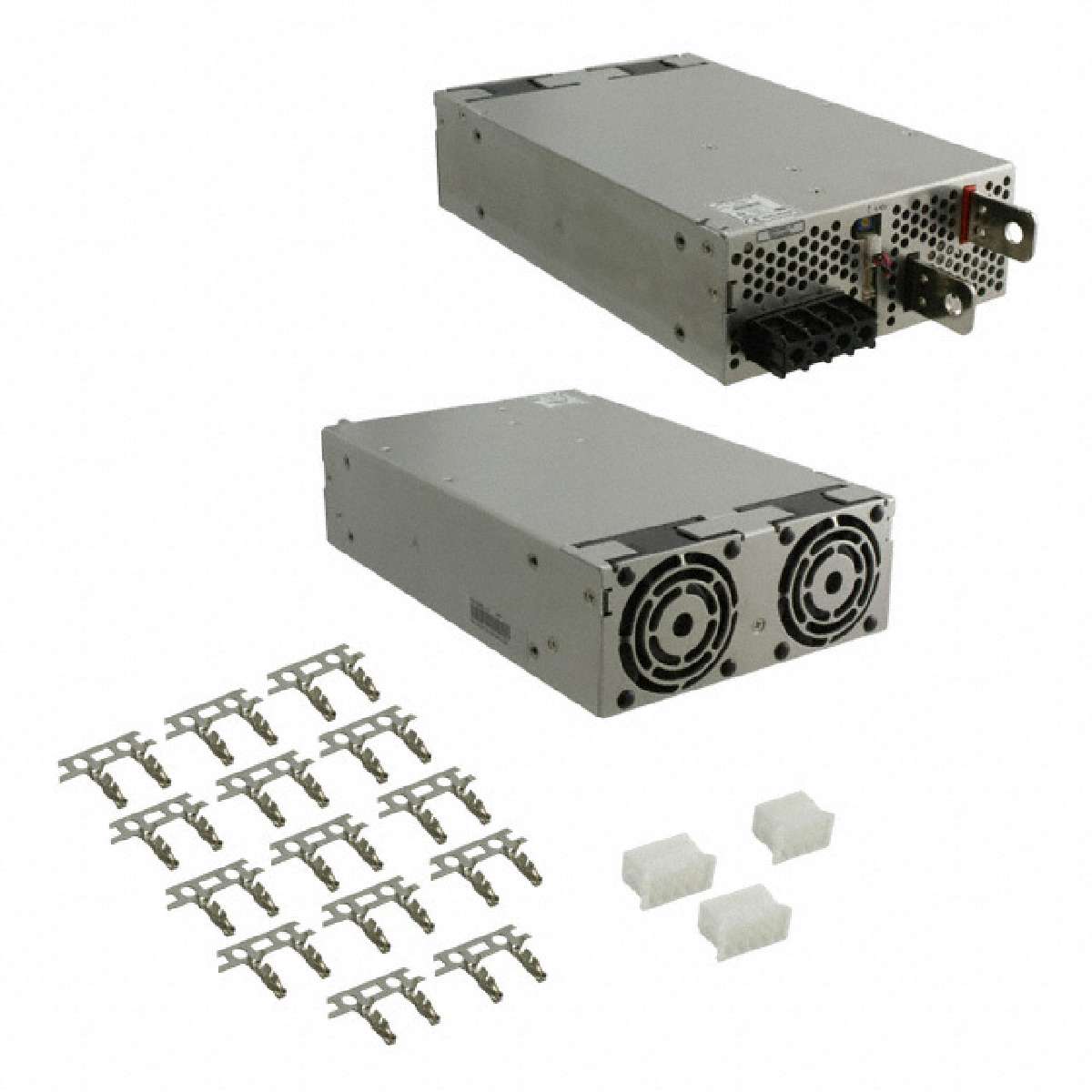

TDK LAMBDA SWS1000L-5 AC-DC Open Frame Power Supply, Medical, Adjustable, Fixed, 1 Output, 85V, 265V, 1kW, 5V
* Low Cost
* Conforms to EN61000-3 PFC
* Universal Input 85-264 VAC
* Input Immunity to EN61000-4
* UL/CSA/EN60950 and CE Mark
* Low Profile Cases
得捷:
AC/DC CONVERTER 5V 1000W
艾睿:
Ensure your electronic devices operate by using this SWS1000L-5 AC to DC power supply from TDK-Lambda. It has a voltage of 5 V and maximum output power of 1000 W. This part&s;s single output can handle a current up to 200 A. This part has a minimum operating temperature of -20 °C and a maximum of 74 °C.
Allied Electronics:
Power Supply; AC-DC; 5V@200A; 85-265V In; Enclosed; PanelMount; Medical; PFC; SWS Series
Chip1Stop:
AC/DC Power Supply Single-OUT 5V 200A 1KW
Verical:
AC/DC Power Supply Single-OUT 5V 200A 1000W Medical
额定功率 1000 W
输出接口数 1
输出电压 5 V
输出电流 200 A
输出功率 1000 W
隔离电压 4 kV
输入电压DC Max 350 V
输入电压DC Min 120 V
输入电压AC Max 265 v
输入电压AC Min 85 v
输出电流Max 200 A
输入电流Min 12 A
输出功率Max 1 kW
工作温度Max 74 ℃
工作温度Min -20 ℃
输入电压AC 85V ~ 265V
输入电压 85V ~ 265V
安装方式 Chassis
长度 9.5 in
宽度 2.4 in
高度 5.9 in
工作温度 -20℃ ~ 74℃
产品生命周期 Active
包装方式 Bulk
制造应用 医用型
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
