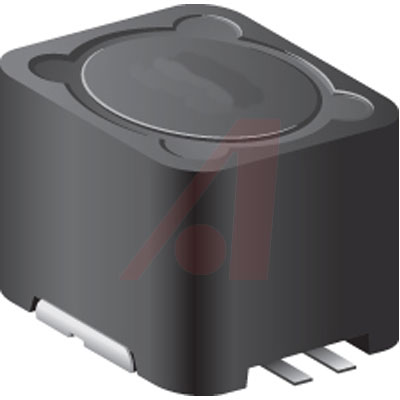

BOURNS SRR1210A-101M 表面贴装功率电感器, AEC-Q200 SRR1210A系列, 100 µH, ± 20%, 屏蔽, 0.135 ohm, 2.5 A
**Features:
**
* Shielded Construction
* Inductance Range: 1 to 1000 μH
* Heating Current Up to 11 A
* Dimensions: 12 × 12 × 10 mm
* AEC-Q200 Qualified**
Applications:
**
* Automotive Systems: Driver Assistant, Information, Entertainment and Lighting
* DC/DC Converters
* Power Supplies
得捷:
FIXED IND 100UH 2.5A 135MOHM SMD
艾睿:
This power SRR1210A-101M surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 100u H. It has a tolerance of 20%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 3MTyp Hz. This SMD inductor has a maximum DC current of 2.5Typ A with a maximum resistance of 135m Ohm. This product is 12.5 mm long, 10 mm tall and 12.5 mm deep. This device utilizes wirewound technology.
Allied Electronics:
SMD Shieled Power Inductor; 100uH; 20%; SRR1210A
安富利:
Ind Power Shielded 100uH 20% 796KHz 16Q-Factor Ferrite 2.5A T/R
Verical:
Inductor Power Shielded Wirewound 100uH 20% 1KHz 16Q-Factor Ferrite 2.5A 0.135Ohm DCR Automotive T/R
Newark:
# BOURNS SRR1210A-101M Surface Mount Power Inductor, AEC-Q200 SRR1210A Series, 100 H, 20%, Shielded, 0.135 ohm, 2.5 A
Online Components:
Inductor Power Shielded Wirewound 100uH 20% 1KHz 16Q-Factor Ferrite 2.5A 135mOhm DCR Automotive T/R
Electro Sonic:
Inductor Power Shielded Wirewound 100uH 20% 1KHz 16Q-Factor Ferrite 2.5A 135mOhm DCR Automotive T/R
额定电流 2.5 A
容差 ±20 %
电感 100 µH
自谐频率 3 MHz
Q值 16
电感公差 ±20 %
测试频率 1 kHz
电阻DC) 0.135 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.135 Ω
安装方式 Surface Mount
封装 12mm x 12mm x 10mm
宽度 12 mm
高度 10 mm
封装 12mm x 12mm x 10mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
