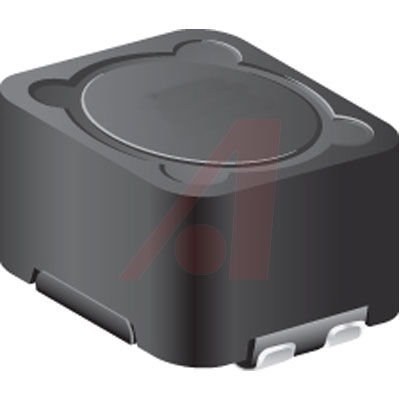

BOURNS SRF1280A-150M 电感, 耦合, 15UH, 20%, 5.03A
**Features:
**
* Multiple Applications: Parallel, Series, Dual-Inductor and Transformer
* Magnetically Shielded, Low Radiation
* Inductance Range: 0.47 to 4000 μH
* Rated Current Up to 17.9 A
* AEC-Q200 Qualified**
Applications:
**
* Automotive Systems: Driver Assistant, Information, Entertainment and Lighting
* DC/DC Converters
* Power Supplies
* SEPIC — DC/DC Converters
得捷:
INDUCT ARRAY 2 COIL 15UH SMD
e络盟:
电感, 耦合, 15 µH, 20%, 0.0333 ohm, 5.03 A, 12.5mm x 12.5mm x 8mm
艾睿:
Inductor Power Shielded Wirewound 15uH/60uH 20% 100KHz Ferrite 5.03A/2.51A 33.3mOhm/129mOhm DCR Automotive T/R
Allied Electronics:
Dual-Winding Shielded Power Inductor; 15uH; 20%; SRF1280A
安富利:
Ind Power Shielded 15uH 20% 100KHz Ferrite 5.03A/2.51A T/R
Newark:
# BOURNS SRF1280A-150M INDUCTOR, COUPLED, 15UH, 20%, 5.03A
额定电流 2.51 A
容差 ±20 %
电感 15 μH
电感公差 ±20 %
测试频率 100 kHz
电阻DC) 0.129 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 SMD
长度 12.5 mm
宽度 12.5 mm
高度 8 mm
封装 SMD
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
