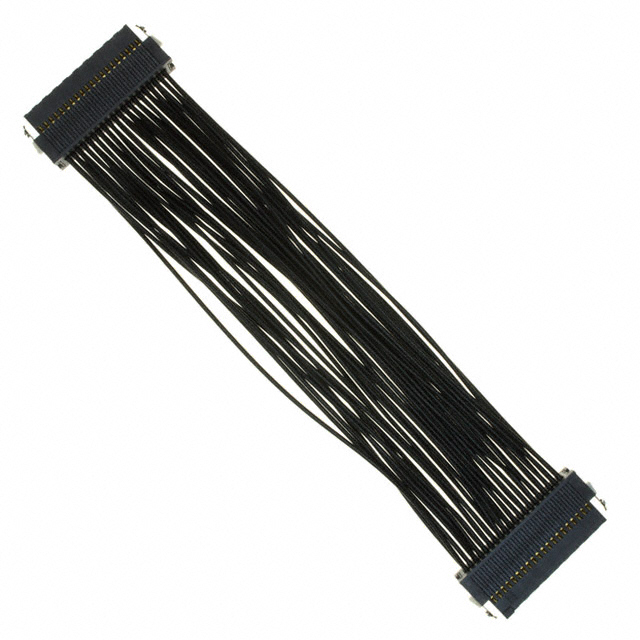

SFSD Series Discrete Wire Cable Assemblies
These SFSD Series Discrete Wire Cable Assemblies from are available in a variety of configurations. The cable used for this range of SFSD Series Discrete Wire Cable Assemblies is 28 AWG with Black PVC insulation. The dual row ISDF Series Sockets used for this range of SFSD Series Discrete Wire Cable Assemblies have Tiger Eye Contacts with 0.76 μm Gold plating on the contact area and 0.076 μm Gold plating on the tails.
Socket Housing Insulator Material: Black LCP
Operating Temperature Range: -35 → 80 °C
**End Options:**
**DR** Double End with Retention Latch
**NUS** notch up, straight Pin 1 to Pin N-1
**NUX** notch up, cross pin Pin 1 to Pin N
**NDS** notch down, straight Pin 1 to Pin 2

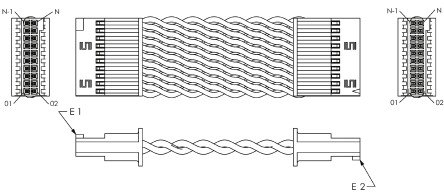

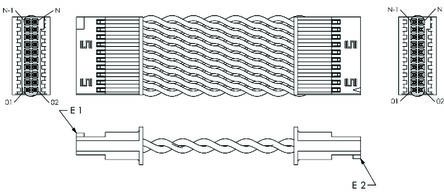

**NDX** notch down, crossed Pin 1 to Pin 1
### 注
For mating TFM Series Headers see stock number 481-4667 typical.
