SFP120C100

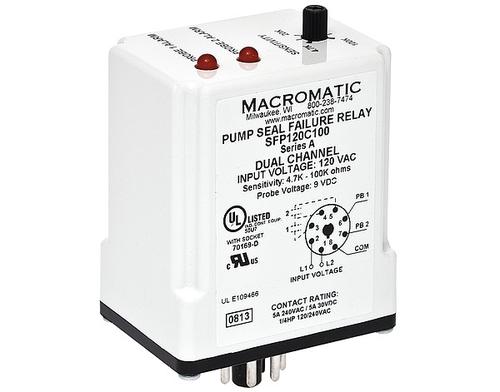

MACROMATIC CONTROLS SFP120C100 Safety Relay, SFP Series, SPST-NO, 120VAC, 5A, Socket, Quick Connect

SFP Series Pump Seal Failure Relays are designed to monitor the shaft seals of submersible pumps. A resistive-measuring probe is installed in the pump seal cavity. If the seal starts to leak, contaminating fluid enters the seal cavity, which lowers the resistance between the internal probe and the common connection. When the resistance drops below the user-adjustable sensitivity set-point of the relay, the output relay energizes and the LED turns ON. The relay output can be used to give an alarm indication of a leaking seal. These products will automatically reset when the fault condition clears.

.

*Features:**

* Monitors Shaft Seals of Submersible Pumps for Leakage

* Single-Channel Monitors One Pump

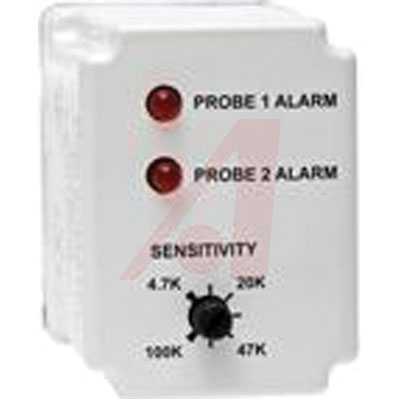

* Knob Adjustable Sensitivity Range **Specifications: **

* 4.7-100 kΩ Sensitivity Range

* 10 A @ 240 VAC, SPDT or DPDT

* Temperature: –28°C to +65°C

* Dimensions: 1.7" D × 2.4" W × 3.2" H
