SA1E-GN2-2M

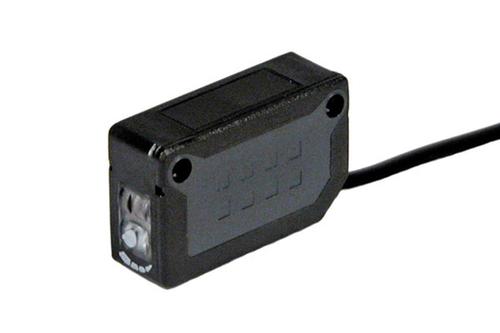

IDEC SA1E-GN2-2M Photoelectric Sensor, Datasensor, SA1E Series, 35mm, Convergent, NPN, 10V to 30V

Ensuring the accurate recognition of target objects is critital for many control systems. Reliable object recognition means fewer false alarms, increased productivity and less product rejection. When selecting sensors for your applications, the most important criteria to consider are: reliability, durability and ruggedness. The miniature SA1E photoelectric sensors incorporates all of these features in a compact housing, and are also easy-to-install and competitively priced. All SA1E photoelectric sensors are IP67 rated, UL/c-UL listed and CE marked. A choice of NPN or PNP outputs are available, as well as a choice of Dark ON or Light ON operation modes.

.

*Features:**

* Six sensing methods

* 1m proximity, 15cm with narrow beam

* 4m polarized retro-reflective

* 15m through-beam

* Standard 3 wire ouput configuration

* Cable and M8 connector types available

* NPN output, PNP output, Light ON, Dark ON options

* Long sensing ranges, high-speed response

* CE marked, UL listed
