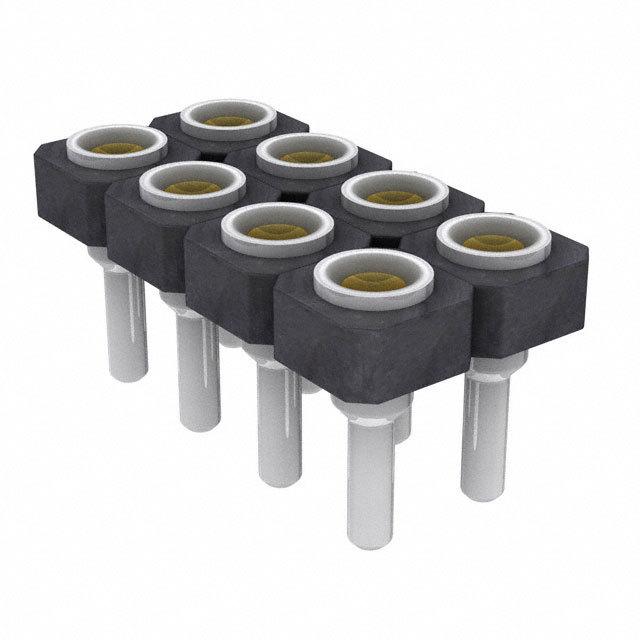

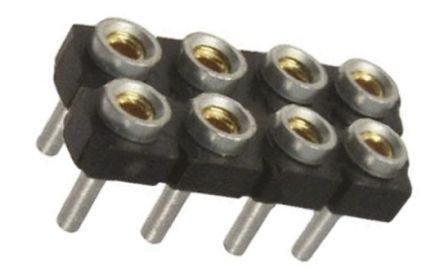

SDL-104-T-12概述

Low Profile 2.54mm Screw Machined Socket Strips - SDL SeriesSDL series board to board machined through hole double row socket strips with a 2.54mm pitch and a low profile design. The body of these SDL series board-to-board PCB socket strips is made from black glass filled polyester and the contacts are made from phosphor bronze with a gold plating. The temperature range at which these board to board low profile machined socket strips can be used is -55 to +125°C. Part numbers SDL-XXX-X-10 have hollow leg contacts with a 3.10mm pin shoulder height. Part numbers SDL-XXX-X-12 are micro sockets which have hollow leg contacts with a 2.41mm pin shoulder height. Part numbers SDL-XXX-G-XX have 0.76μm gold plated contacts with a 0.25μm gold shell. Part numbers SDL-XXX-T-XX have 0.76μm gold plated contacts with a tin shell.### 注These SDL series board-to-board machined socket strips mate with the TD series header terminal strips: see stock number 765-5874 typically.### 2.54 mm 板对板和线对板 - Samtec

Low Profile 2.54mm Screw Machined Socket Strips - SDL Series

SDL series board to board machined through hole double row socket strips with a 2.54mm pitch and a low profile design. The body of these SDL series board-to-board PCB socket strips is made from black glass filled polyester and the contacts are made from phosphor bronze with a gold plating. The temperature range at which these board to board low profile machined socket strips can be used is -55 to +125°C.

Part numbers SDL-XXX-X-10 have hollow leg contacts with a 3.10mm pin shoulder height.

Part numbers SDL-XXX-X-12 are micro sockets which have hollow leg contacts with a 2.41mm pin shoulder height.

Part numbers SDL-XXX-G-XX have 0.76μm gold plated contacts with a 0.25μm gold shell.

Part numbers SDL-XXX-T-XX have 0.76μm gold plated contacts with a tin shell.

### 注

These SDL series board-to-board machined socket strips mate with the TD series header terminal strips: see stock number 765-5874 typically.

SDL-104-T-12中文资料参数规格

技术参数

触点数 8

极性 Female

触点电镀 Gold

额定电流 1 A

排数 2

针脚数 8

接触电阻 10.0 mΩ

额定电流Max 1 A

工作温度Max 125 ℃

工作温度Min -55 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

外形尺寸

长度 10.2 mm

宽度 5.08 mm

高度 2.41 mm

引脚间距 2.54 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Beryllium Copper

工作温度 -55℃ ~ 125℃

外壳材质 Plastic

其他

产品生命周期 Discontinued at Digi-Key

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

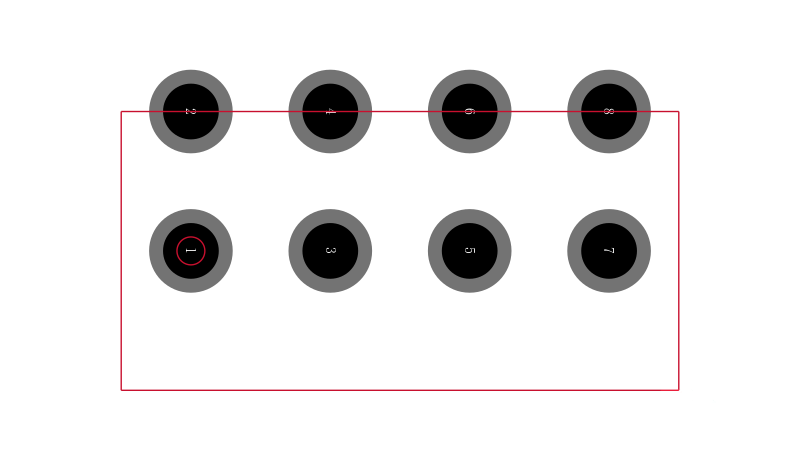

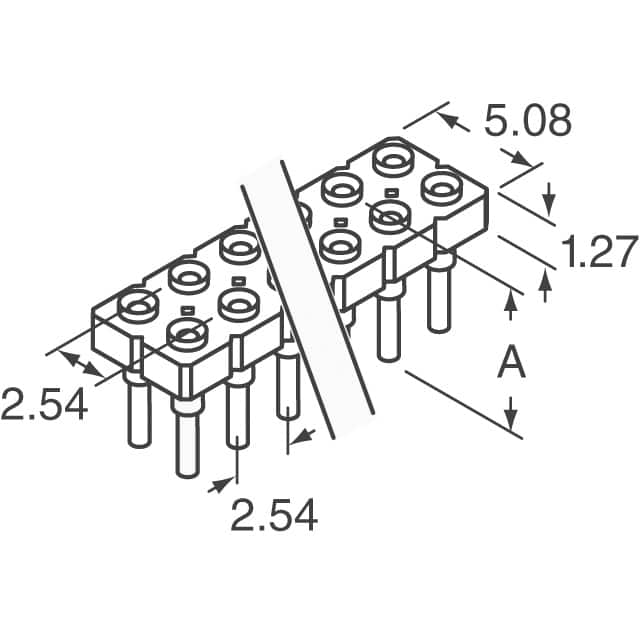

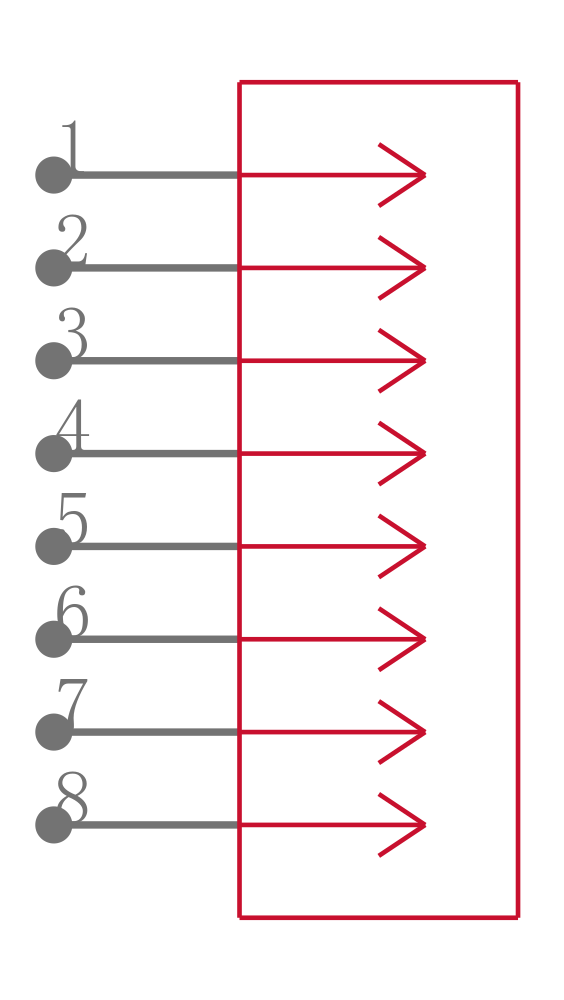

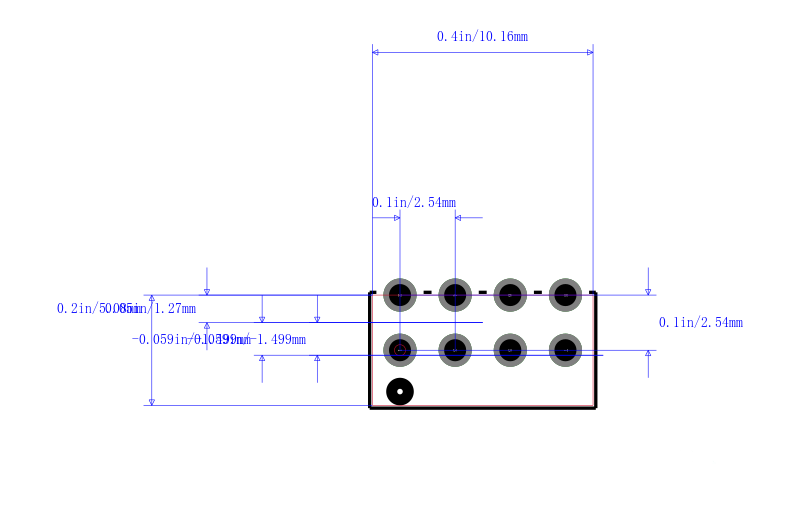

SDL-104-T-12引脚图与封装图

在线购买SDL-104-T-12

型号： SDL-104-T-12

制造商： Samtec 申泰电子

描述：Low Profile 2.54mm Screw Machined Socket Strips - SDL Series SDL series board to board machined through hole double row socket strips with a 2.54mm pitch and a low profile design. The body of these SDL series board-to-board PCB socket strips is made from black glass filled polyester and the contacts are made from phosphor bronze with a gold plating. The temperature range at which these board to board low profile machined socket strips can be used is -55 to +125°C. Part numbers SDL-XXX-X-10 have hollow leg contacts with a 3.10mm pin shoulder height. Part numbers SDL-XXX-X-12 are micro sockets which have hollow leg contacts with a 2.41mm pin shoulder height. Part numbers SDL-XXX-G-XX have 0.76μm gold plated contacts with a 0.25μm gold shell. Part numbers SDL-XXX-T-XX have 0.76μm gold plated contacts with a tin shell. ### 注 These SDL series board-to-board machined socket strips mate with the TD series header terminal strips: see stock number 765-5874 typically. ### 2.54 mm 板对板和线对板 - Samte
