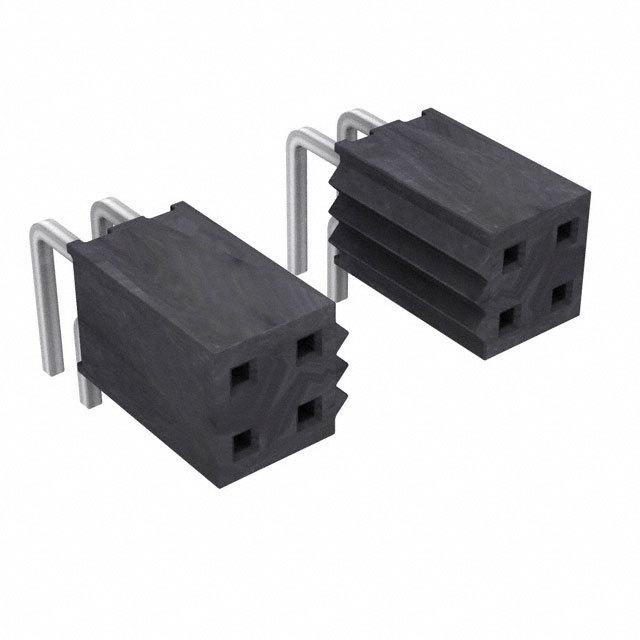

SQT-115-01-F-D-RA

Conn Socket Strip SKT 30POS 2mm Solder RA Thru-Hole Tube

30 Position Receptacle Connector Through Hole, Right Angle

得捷:
CONN RCPT 30P 0.079 GOLD PCB R/A

立创商城:
2mm

艾睿:
This socket strip SQT-115-01-F-D-RA header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This SKT connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2 mm. It has a right angle body orientation. It has a socket type gender. It has a maximum voltage rating of 450 VAC. This device has a maximum current rating of 5.1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. SQT-115-01-F-D-RA is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 30.3 mm long, 4 mm tall and 9.62 mm deep.

安富利:
Conn Socket Strip SKT 30 POS 2mm Solder RA Thru-Hole Tube

Newark:
# SAMTEC  SQT-115-01-F-D-RA  2MM SOCKET STRIPS
