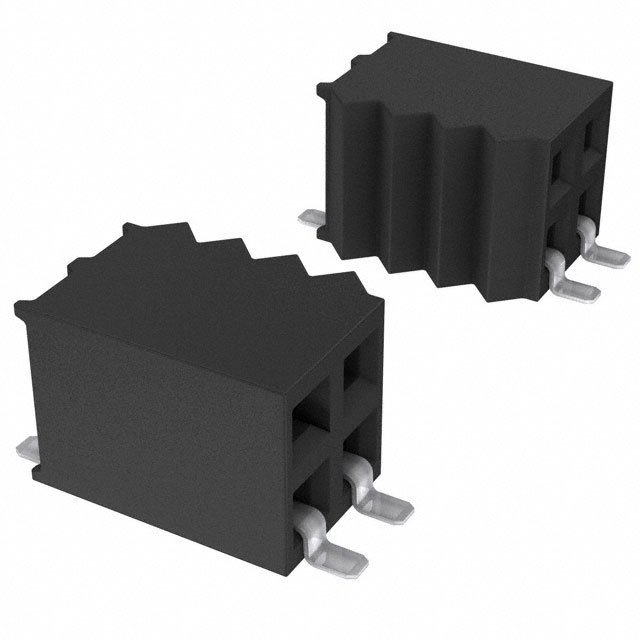

SSM-113-L-DH

Conn Socket Strip SKT 26POS 2.54mm Solder RA SMD Tube

26 位置 插座 0.100"（2.54mm） 表面贴装，直角 镀金

立创商城:
2.54mm

得捷:
CONN RCPT 26POS 0.1 GOLD SMD R/A

艾睿:

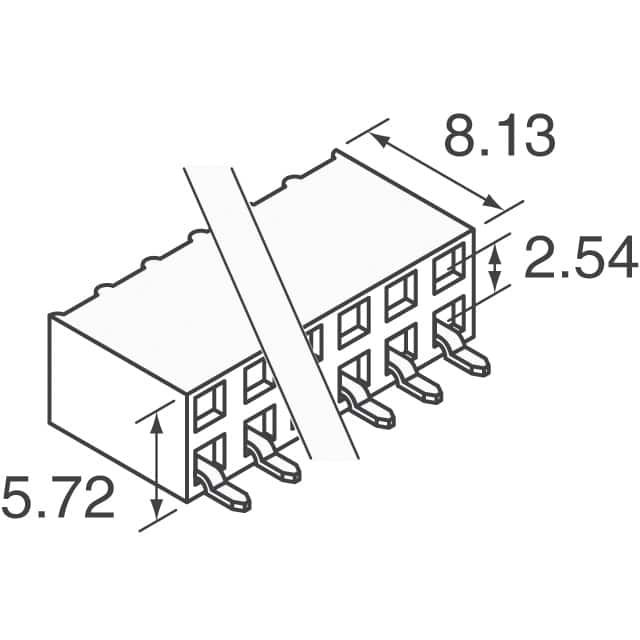

As an added safety precaution, the socket strip SSM-113-L-DH header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This SKT connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 510 VDC|360VAC. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 5.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. This product is 33.02 mm long, 5.72 mm tall and 11.18 mm deep. SSM-113-L-DH is housed in black liquid crystal polymer. It uses the solder termination method.

安富利:
Conn Socket Strip SKT 26 POS 2.54mm Solder RA SMD Tube

Newark:
# SAMTEC  SSM-113-L-DH  Board-To-Board Connector, 2.54 mm, 26 Contacts, Receptacle, SSM Series, Surface Mount, 2 Rows

Win Source:
CONN RCPT 26POS 0.1 GOLD SMD R/A / 26 Position Receptacle Connector 0.100" 2.54mm Surface Mount, Right Angle Gold
