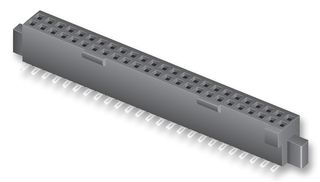

SFML-107-T1-S-D-LC

Conn Socket Strip SKT 14POS 1.27mm Solder ST Thru-Hole Tube

14 位置 插座 通孔

得捷:
CONN RCPT 14POS 0.05 GOLD PCB

艾睿:
As an added safety precaution, the socket strip SFML-107-T1-S-D-LC header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This SKT connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. It has a socket type gender. Its pitch is 1.27 mm. It has a straight body orientation. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. SFML-107-T1-S-D-LC is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 12.83 mm long, 4.57 mm tall and 3.68 mm deep. It uses the solder termination method.

Newark:
# SAMTEC  SFML-107-T1-S-D-LC  Wire-To-Board Connector, 1.27 mm, 14 Contacts, Receptacle, SFML Series, Solder, 2 Rows
