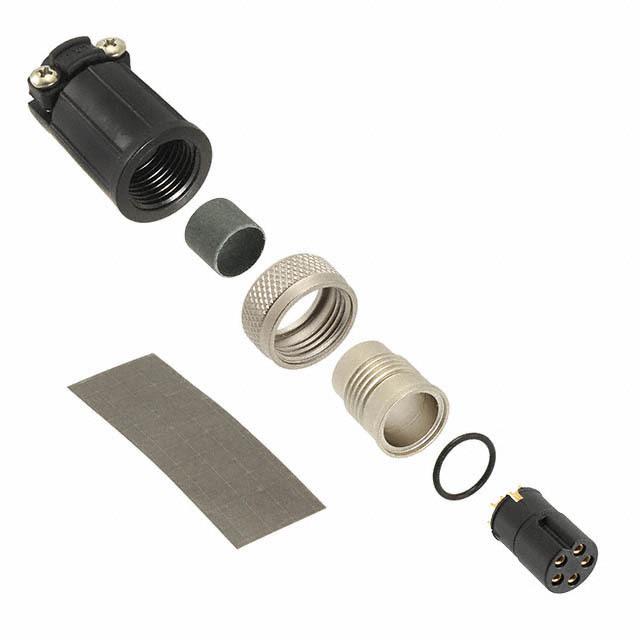

SF6382-5SG-520

Conn Circular SKT 5POS Solder Cup ST Cable Mount 5 Terminal 1Port

5 针位圆形 插头，母插口 焊杯

得捷:
CONN PLUG FMALE 5P GOLD SLDR CUP

贸泽:
Standard Circular Connector Cable Mt. 5#16 Skt Mini-Shield

艾睿:
Use only the best SF6382-5SG-520 connector from Switchcraft to create a solid connection for your cylindrical cable housing. It has a straight body orientation. This socket type connector&s;s 5 contacts that are made out of copper alloy and plated with gold over nickel. Its shell size arrangement is plated in nickel. This device has a maximum current rating of 13 A. This circular connector has an operating temperature of -40 to 120 °C. This product is 50.8 mm long with a diameter of 19.3 mm. It uses the solder cup termination method.
