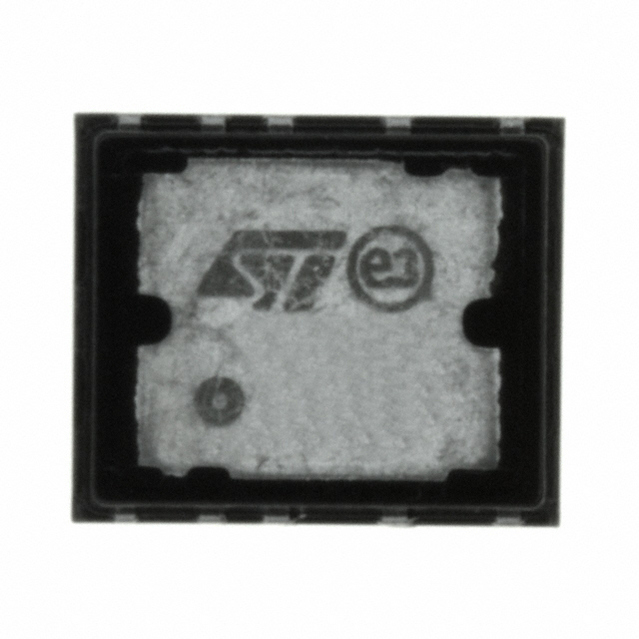

N沟道30V - 0.006ohm - 20A - 的PolarPAK的STripFET功率MOSFET N-channel 30V - 0.006ohm - 20A - PolarPAK STripFET Power MOSFET
Description
This Power MOSFET is the latest development of STMicroelectronics unique “single feature size” strip-based process. The resulting transistor shows extremely high packing density for low on resistance, moreover the double sides cooling package with ultra low junction to case thermal resistance allows to handle higher levels of current.
Features
■ Ultra low top and bottom junction to case thermal resistance
■ Very low capacitances
■ 100% Rg tested
■ Fully encapsulated die
■ 100% Matte tin finish in compliance with the 2002/95/EC european directive
■ PolarPAK® is a trademark of VISHAY
Application
■ Switching applications
额定电压DC 30.0 V
额定电流 20.0 A
通道数 1
漏源极电阻 7.8 mΩ
极性 N-Channel
耗散功率 5.2 W
阈值电压 2.5 V
输入电容 1.38 nF
栅电荷 13.4 nC
漏源极电压Vds 30 V
漏源击穿电压 30 V
栅源击穿电压 ±16.0 V
连续漏极电流Ids 20.0 A
上升时间 50 ns
输入电容Ciss 1380pF @25VVds
额定功率Max 5.2 W
下降时间 15 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 5.2W Tc
安装方式 Surface Mount
引脚数 10
封装 PolarPAK-10
长度 6.15 mm
宽度 5.16 mm
高度 0.8 mm
封装 PolarPAK-10
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
