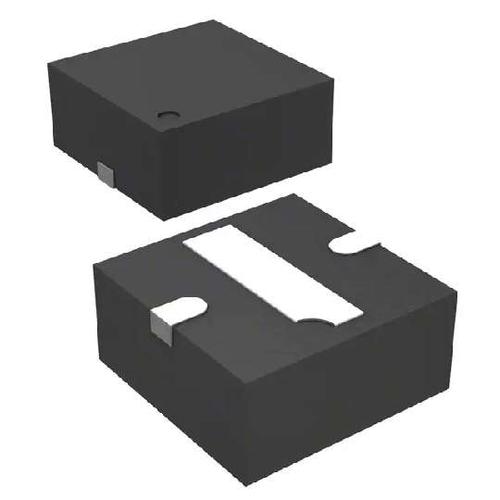

SMP1330-085LF

Diode PIN Attenuator 50V 1500mA 2Pin QFN EP T/R

The is a surface mountable, low capacitance silicon PIN limiter diode designed as a shunt connected PIN diode for high power limiter applications from 10 MHz to over 6 GHz. Maximum resistance at 10 mA is 2 Ω and maximum capacitance at 0 V is 1.0 pF. The combination of low junction capacitance, low parasitic inductance, low thermal resistance, and nominal 3 μm I-region width, makes the SMP1330-085LF useful in large signal limiter applications. The threshold level is +10 dBm, nominal.
