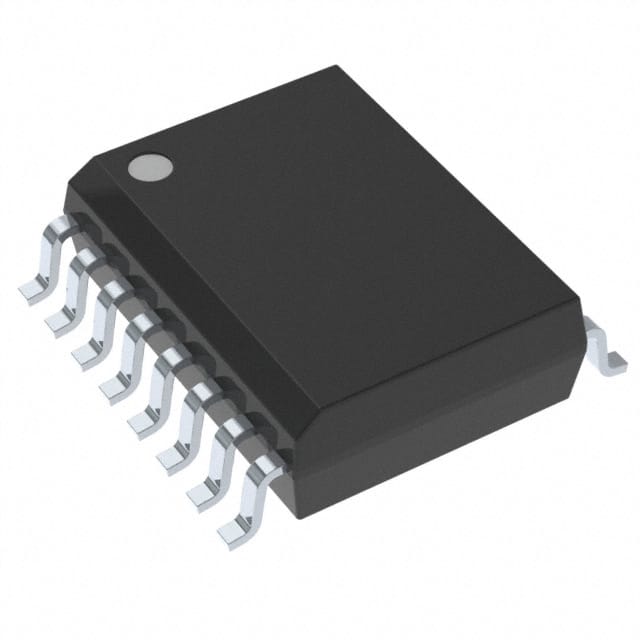

S25FL512SDPMFV011

NOR闪存 Nor

FLASH - NOR Memory IC 512Mb 64M x 8 SPI - Quad I/O 66 MHz 16-SOIC

立创商城:
S25FL512SDPMFV011

贸泽:
NOR闪存 Nor

艾睿:
NOR Flash Serial SPI, Dual SPI, Quad SPI 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 8ns 16-Pin SOIC W Tube

安富利:
The Spansion S25FL512S device is a flash non-volatile memory product using: * MirrorBit technology - that stores two data bits in each memory array transistor * Eclipse architecture - that dramatically improves program and erase performance * 65 nm process lithographyThis device connects to a host system via a Serial Peripheral Interface SPI. Traditional SPI single bit serial input and output Single I/O or SIO is supported as well as optional two bit Dual I/O or DIO and four bit Quad I/O or QIO serial commands. This multiple width interface is called SPI Multi-I/O or MIO. In addition, the FL-S family adds support for Double Data Rate DDR read commands for SIO, DIO, and QIO that transfer address and read data on both edges of the clock.The Eclipse architecture features a Page Programming Buffer that allows up to 256 words 512 bytes to be programmed in one operation, resulting in faster effective programming and erase than prior gene
