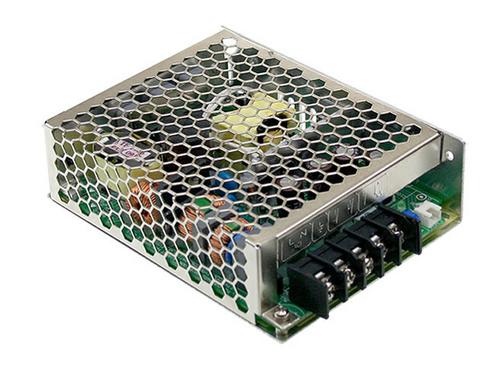

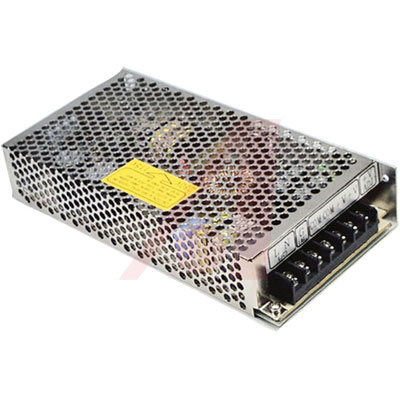

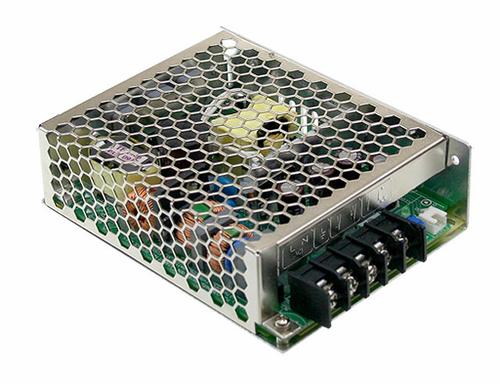

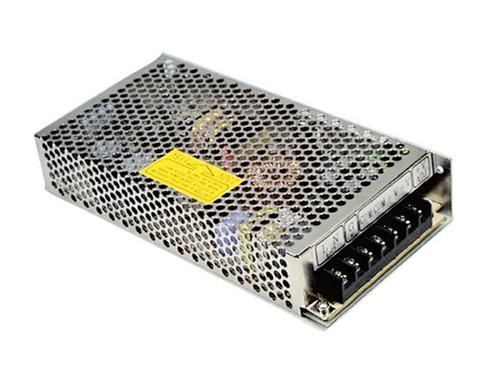

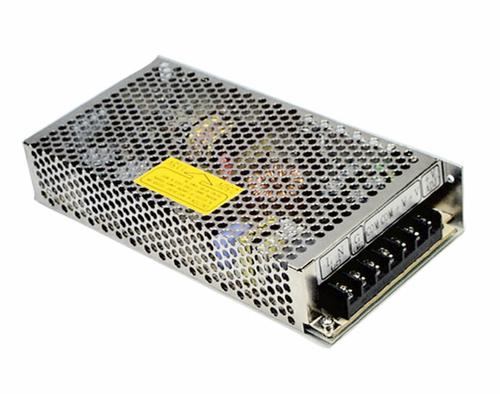

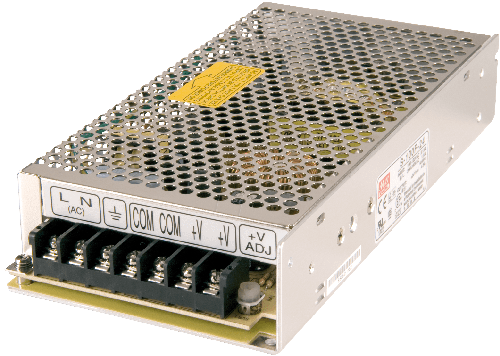

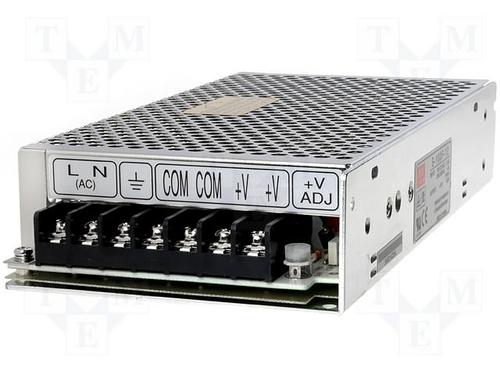

Power Supply; AC-DC; 12V; 8.5A; 88-132/176-264V In; Enclosed; Panel Mnt; S-100F Series
* Single Output Switching Power Supply
* Universal AC Input: 85-264 VAC, 120-370 VDC
* Fixed Switching Frequency at 56 kHz
* Short Circuit, Overload, and Over-Voltage Protection Included
* Free Air Convection Cooling
* 100% Full Load Burn-In Tested
* 2-Year Warranty
**Features:**
* Output: 12 V, 8.5 A
* Efficiency: 80%
* Mean Time Before Failure: 314.9K Hours Min.
* AC Input Voltage Range: 88-132 VAC, 176-264 VDC
* DC Adjustment Range: ±10% Rated Output Voltage
* Overload Protection: 105% — 150% Rated Output Power Via Hiccup Mode, Auto-Recovery
* Over Voltage Protection: 115% - 135% Rated Output Voltage Via Hiccup Mode, Auto-Recovery
* Connection: 7P/9.5 mm Pitch Terminal Block
* Dimensions L x W x H Iin.: 7.83 x 3.86 x 1.50 Inch
