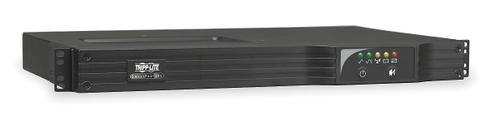

SMART750RM1U

SMART750RM1U图片1
SMART750RM1U图片2
SMART750RM1U图片3
SMART750RM1U图片4
SMART750RM1U图片5
SMART750RM1U图片6
SMART750RM1U图片7
SMART750RM1U图片8
SMART750RM1U概述

UPS; 750VA; 450W; 120VAC Output; 120; 7A Max.; 60Hz; 24VDC

Automatically regulates incoming voltage back to 120 VAC nominal. Up to 4 communication ports 2 USB + 2 DB9 work with FREE included PowerAlert Software to provide automatic, unattended shutdown and power network management. Customized load management receptacles can be remotely controlled to selectively reboot connected equipment. A variety of 15-, 20-, and 30-amp receptacles provide connection options for all equipment. An emergency power-off options provides immediate remote shutdown via a centralized circuit. Included hardware converts these UPS systems to a slim tower configuration.

SMART750RM1U中文资料参数规格
技术参数

频率 60.0 Hz

额定功率 450 W

输入电压DC 83.0V ~ 147V

输出电压 120 V

喷头数量 6

输入电压AC Max 147 v

工作温度Max 40 ℃

工作温度Min 0 ℃

电源电压 120 VAC

输入电压 120 V

封装参数

安装方式 Rack

外形尺寸

长度 425 mm

宽度 445 mm

高度 44.4 mm

电源线长度 3.05 m

物理参数

颜色 Black

重量 13.6 kg

工作温度 0℃ ~ 40℃

其他

产品生命周期 Active

制造应用 网络,单相

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买SMART750RM1U
型号: SMART750RM1U
制造商: Tripp-Lite
描述:UPS; 750VA; 450W; 120VAC Output; 120; 7A Max.; 60Hz; 24VDC
