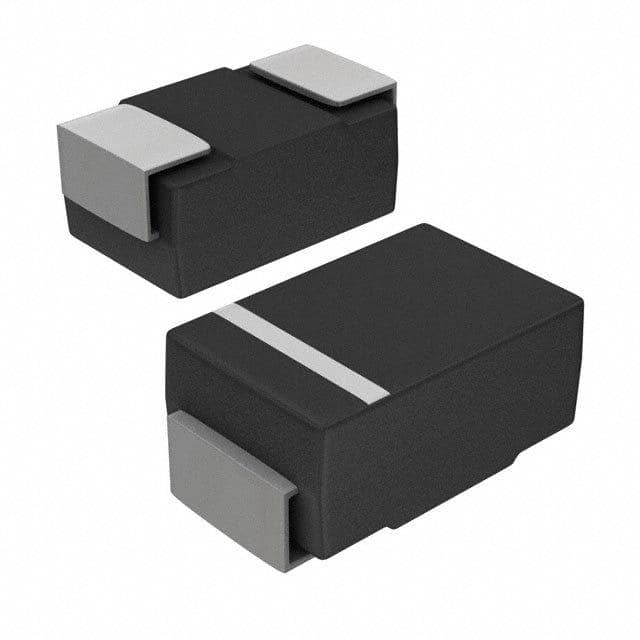

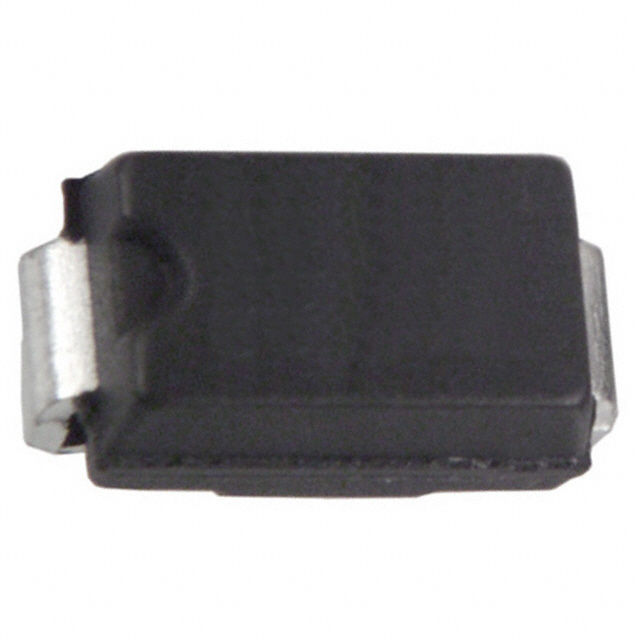

SMAJ45CA-13-F

SMAJ45CA-13-F 编带

400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Features

400W Peak Pulse Power Dissipation

Glass Passivated Die Construction

Uni- and Bi-Directional Versions Available

Excellent Clamping Capability

Fast Response Time

Lead Free Finish/RoHS Compliant Note 4

得捷:
TVS DIODE 45VWM 72.7VC SMA

立创商城:
双向 Vrwm:45V

艾睿:
If you&s;re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this SMAJ45CA-13-F TVS diode from Diodes Zetex is perfect for you. Its peak pulse power dissipation is 400 W. Its test current is 1 mA. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 72.7 V and minimum breakdown voltage is 50 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.

安富利:
Diode TVS Single Bi-Dir 45V 400W 2-Pin SMA T/R

Chip1Stop:
Diode TVS Single Bi-Dir 45V 400W 2-Pin SMA T/R

Verical:
Diode TVS Single Bi-Dir 45V 400W 2-Pin SMA T/R

Win Source:
TVS DIODE 45VWM 72.7VC SMA
