单向 70V

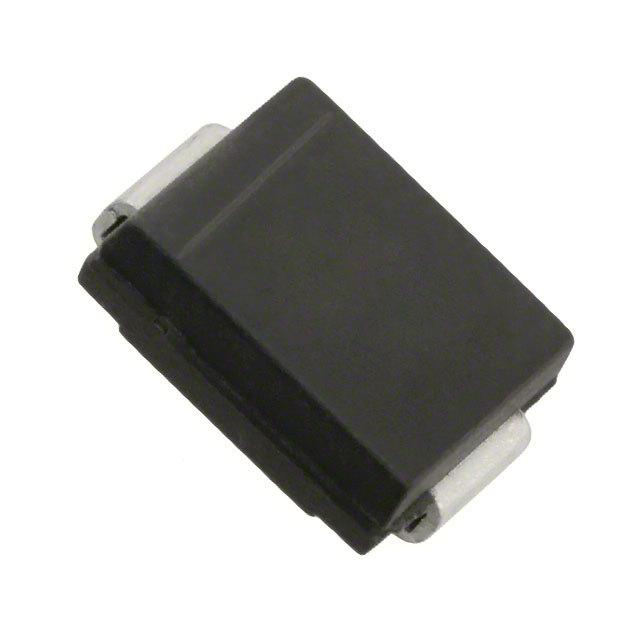

113V 夹子 13.3A Ipp TVS - 表面贴装型 SMC
立创商城:
单向 Vrwm:70V
得捷:
TVS DIODE 70VWM 113VC SMC
艾睿:
Implement surge protection with this SMCJ70A-13-F TVS diode from Diodes Zetex. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 113 V and minimum breakdown voltage is 77.8 V. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
安富利:
Diode TVS Single Uni-Dir 70V 1.5KW 2-Pin SMC T/R
Chip1Stop:
Diode TVS Single Uni-Dir 70V 1.5KW Automotive 2-Pin SMC T/R
Win Source:
TVS DIODE 70VWM 113VC SMC
额定电压DC 70.0 V
工作电压 70 V
额定功率 1.50 kW
击穿电压 77.8 V
电路数 1
耗散功率 1500 W
钳位电压 113 V
最大反向电压（Vrrm） 70V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 77.8 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SMC

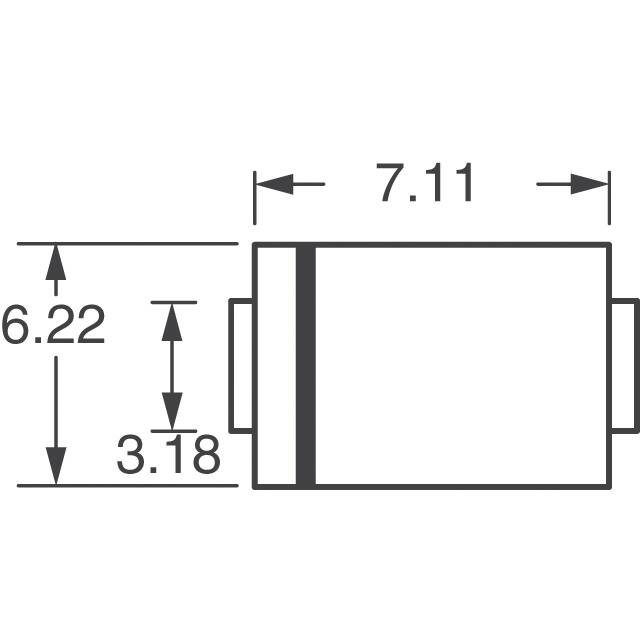

长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 SMC
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ70A-13-F Diodes 美台 | 当前型号 | 当前型号 |
SMCJ70A-13 美台 | 完全替代 | SMCJ70A-13-F和SMCJ70A-13的区别 |
SMCJ70A-TP 美微科 | 功能相似 | SMCJ70A-13-F和SMCJ70A-TP的区别 |
1SMC70A Central Semiconductor | 功能相似 | SMCJ70A-13-F和1SMC70A的区别 |
