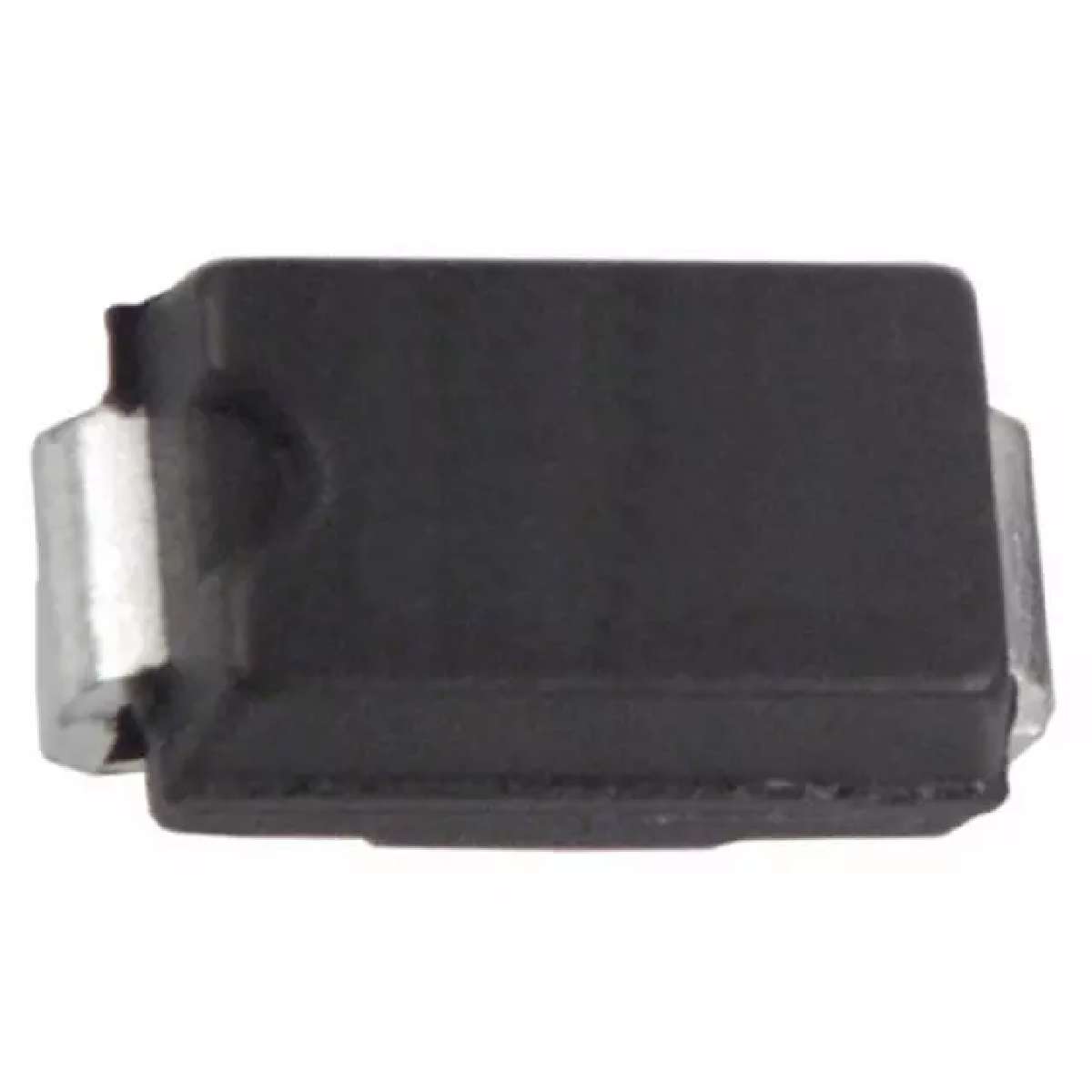

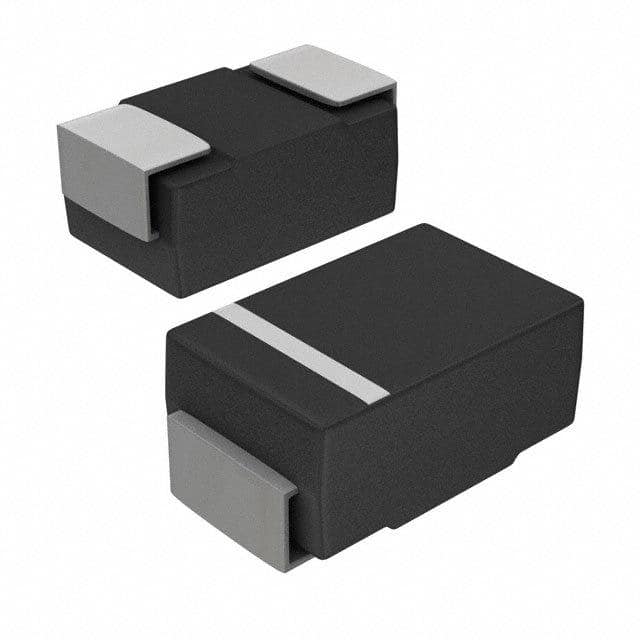

S2BA-13-F 编带
标准 1.5A 表面贴装型 SMA
得捷:
DIODE GEN PURP 100V 1.5A SMA
立创商城:
100V 1.5A 1.15V@1.5A
贸泽:
Rectifiers 100V 2A
艾睿:
Converting from AC to DC is simple when using a switching diode S2BA-13-F rectifier from Diodes Zetex. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 1.5 A. This rectifier has an operating temperature range of -65 °C to 150 °C.
Allied Electronics:
DIODE GEN PURP 100V 1.5A SMA
安富利:
Diode Switching 100V 1.5A 2-Pin SMA T/R
Chip1Stop:
Diode Switching 100V 1.5A 2-Pin SMA T/R
Verical:
Diode Switching 100V 1.5A 2-Pin SMA T/R
额定电压DC 100 V
额定电流 1.50 A
电容 20.0 pF
输出电流 ≤1.50 A
正向电压 1.15 V
极性 Standard
热阻 20℃/W RθJL
反向恢复时间 1 ns
正向电流 1 A
正向电流Max 1.5 A
工作温度Max 150 ℃
工作温度Min 65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMA
长度 4.6 mm
宽度 2.92 mm
高度 2.1 mm
封装 SMA
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
S2BA-13-F Diodes 美台 | 当前型号 | 当前型号 |
S2BA-13 美台 | 类似代替 | S2BA-13-F和S2BA-13的区别 |
