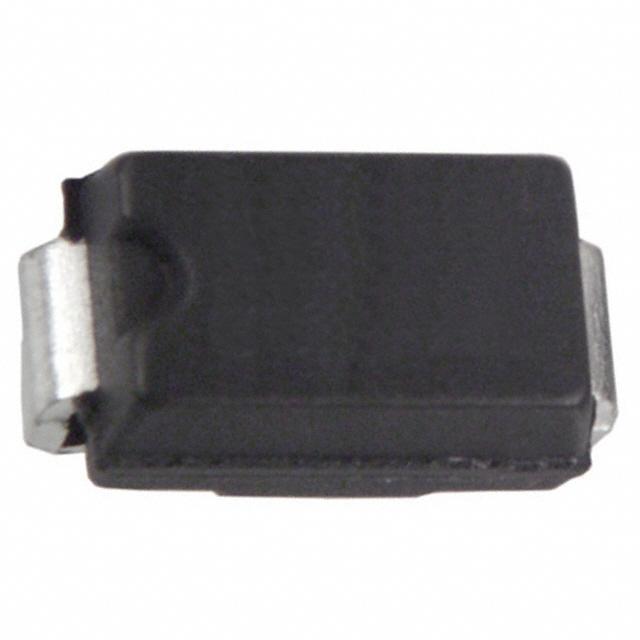

SMAJ20CA-13-F 编带
32.4V 夹子 12.3A Ipp TVS - 表面贴装型 SMA
得捷:
TVS DIODE 20VWM 32.4VC SMA
立创商城:
双向 Vrwm:20V 400W
艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this SMAJ20CA-13-F TVS diode from Diodes Zetex. Its test current is 1 mA. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 32.4 V and minimum breakdown voltage is 22.2 V. Its peak pulse power dissipation is 400 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
Allied Electronics:
400W 20V Transient Voltage Suppr. SMA
安富利:
Diode TVS Single Bi-Dir 20V 400W 2-Pin SMA T/R
Chip1Stop:
Diode TVS Single Bi-Dir 20V 400W 2-Pin SMA T/R
Verical:
Diode TVS Single Bi-Dir 20V 400W 2-Pin SMA T/R
儒卓力:
**TVS-DIODE BI 0,4KW 24V SMA **
Win Source:
TVS DIODE 20VWM 32.4VC SMA
额定电压DC 120 V
额定功率 400 W
击穿电压 22.2 V
电路数 1
耗散功率 400 W
钳位电压 32.4 V
最大反向电压(Vrrm) 20V
测试电流 1 mA
脉冲峰值功率 400 W
最小反向击穿电压 22.2 V
击穿电压 22.2 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 SMA
长度 4.6 mm
宽度 2.92 mm
高度 2.30 mm
封装 SMA
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ20CA-13-F Diodes 美台 | 当前型号 | 当前型号 |
SMAJ20CA 伯恩斯 | 类似代替 | SMAJ20CA-13-F和SMAJ20CA的区别 |
SMAJ20CA-13 美台 | 类似代替 | SMAJ20CA-13-F和SMAJ20CA-13的区别 |
