SBL1640概述
DIODE SCHOTTKY 16A 40V TO220-2
Features
•Schottky Barrier Chip
• Guard Ring Die Construction for
Transient Protection
• Low Power Loss, High Efficiency
• High Surge Capability
• High Current Capability and Low Forward Voltage Drop
• For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Applications
• Lead Free Finish, RoHS Compliant Note 3
Mechanical Data

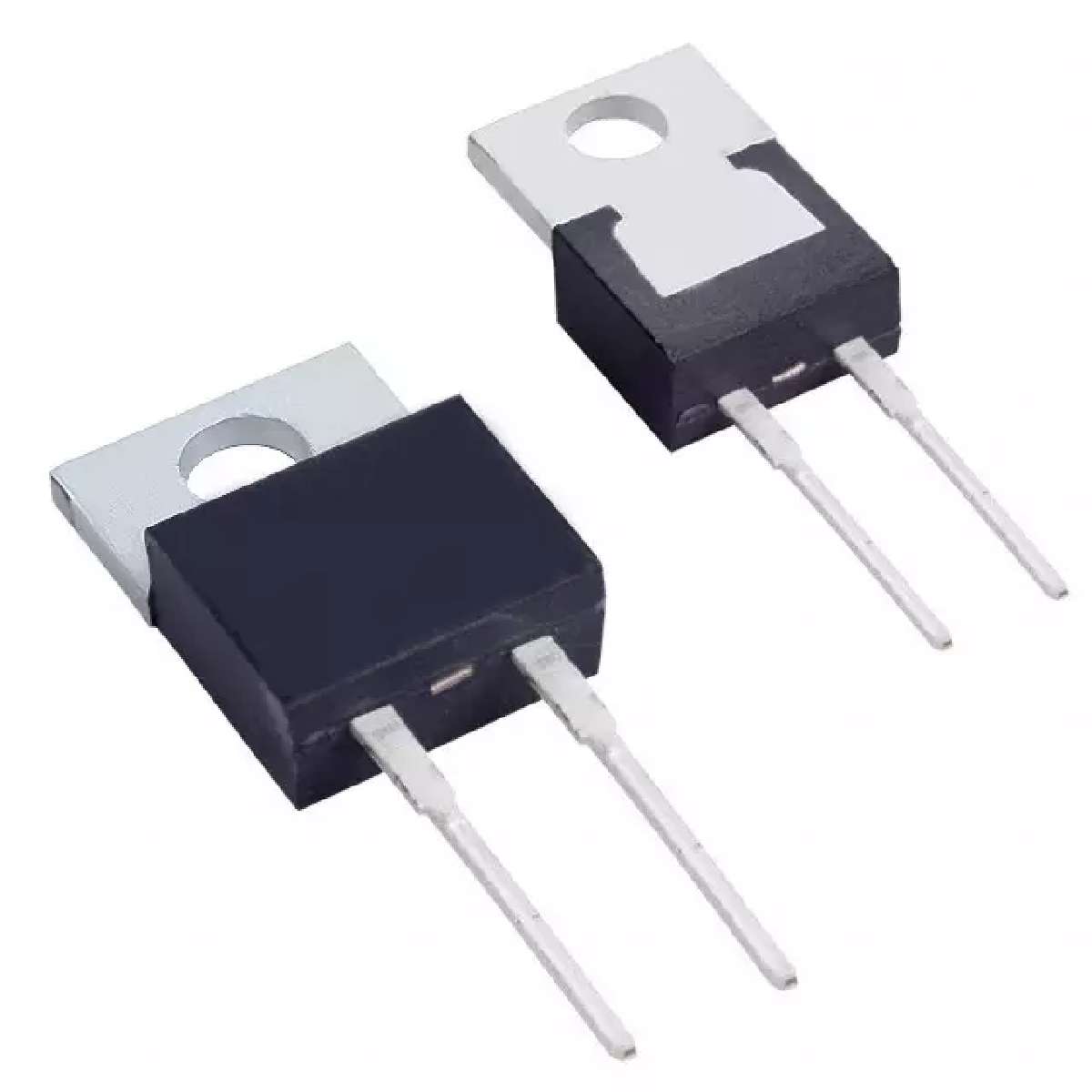

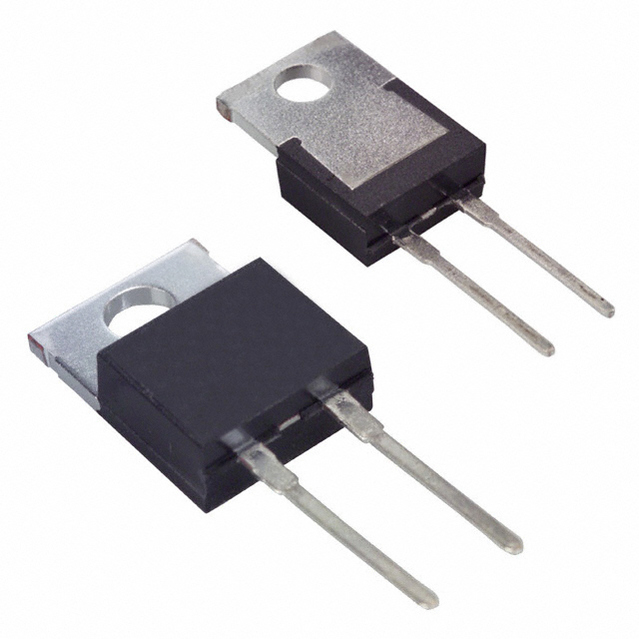

•Case: TO-220AC
• Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020C
• Polarity: See Diagram
• Terminals: Finish – Tin. Solderable per MIL-STD-202,
Method 208
• Mounting Position: Any
• Marking: Type Number
• Weight: 2.24 grams approximate
