DSP Fixed-Point 16Bit 100MHz 257Pin BGA MICROSTAR
Introduction
This section describes the main features, gives a brief functional overview of the TMS320VC5470, lists the pin assignments, and provides a signal description table. The data manual also provides a detailed description section, electrical specifications, parameter measurement information, and mechanical data section describing the available packaging.
Description
The TMS320VC5470 integrates a DSP subsystem based on the TMS320C54x architecture and a RISC microcontroller subsystem based on the ARM7TDMI core as shown in Figure 2−1. The DSP subsystem ncludes 72K x 16-bit SRAM, a timer, a DMA controller, an external memory interface, and two McBSPs. The MCU subsystem includes three timers, general-purpose I/O, and an external memory interface.
TMS320VC5470 Features
• Dual CPU Processor Integrating a TMS320C54x DSP and an ARM7TDMI RISC MCU
• 16-Bit Low-Power DSP With 72K x 16-bit Integrated SRAM Operates at up to 100 MHz
• Smart Power Management and Low-Power Modes for DSP and MCU Subsystems
• Integrated DSP Subsystem Peripherals
− Two High-Speed, Full-Duplex Multichannel Buffered Serial Ports McBSPs Allowing the DSP Core to Interface Directly With CODECs
− Six-Channel Direct Memory Access DMA Controller Enabling Six Independent Block Transfers With No Intervention From the DSP
− ARM Port Interface API Provides 2K x 16-Bit Shared Memory Interface for Efficient Information Exchange Between the MCU Subsystem and the DSP Subsystem CPUs
− External Memory Interface
− Software-Programmable Wait-State Generator Capable of Extending External Bus Cycles By Up To 14 Machine Cycles
− One Software-Programmable Hardware Timer For Control Operations
− Programmable Phase-Locked Loop PLL Clock Generator
• ARM7TDMI RISC Microcontroller Core With 16K Bytes of Integrated SRAM and Enhanced Emulation Capabilities Operates at Up To 47.5 MHz
• Integrated MCU Subsystem Peripherals
− Universal Asynchronous Receiver/Transmitter UART
− UART/IrDA Interface Which Supports the Slow Infrared SIR Protocol
− Serial Peripheral Interface
− Thirty-Six General-Purpose I/O Pins
− Inter-Integrated Circuit I2C Interface
− Two General-Purpose Timers
− One Watchdog Timer
− Interrupt Handler
− Interface to External Memory Supports Flash, SRAM, SDRAM, ROM
− Flexible Clock Management for MCU Peripherals
− Programmable Phase-Locked Loop PLL Clock Generator
• On-Chip Scan-Based Emulation Logic, IEEE Std 1149.1† JTAG Boundary Scan Logic of DSP and MCU Cores
• Supports Scan-Based Emulation of DSP and MCU Cores

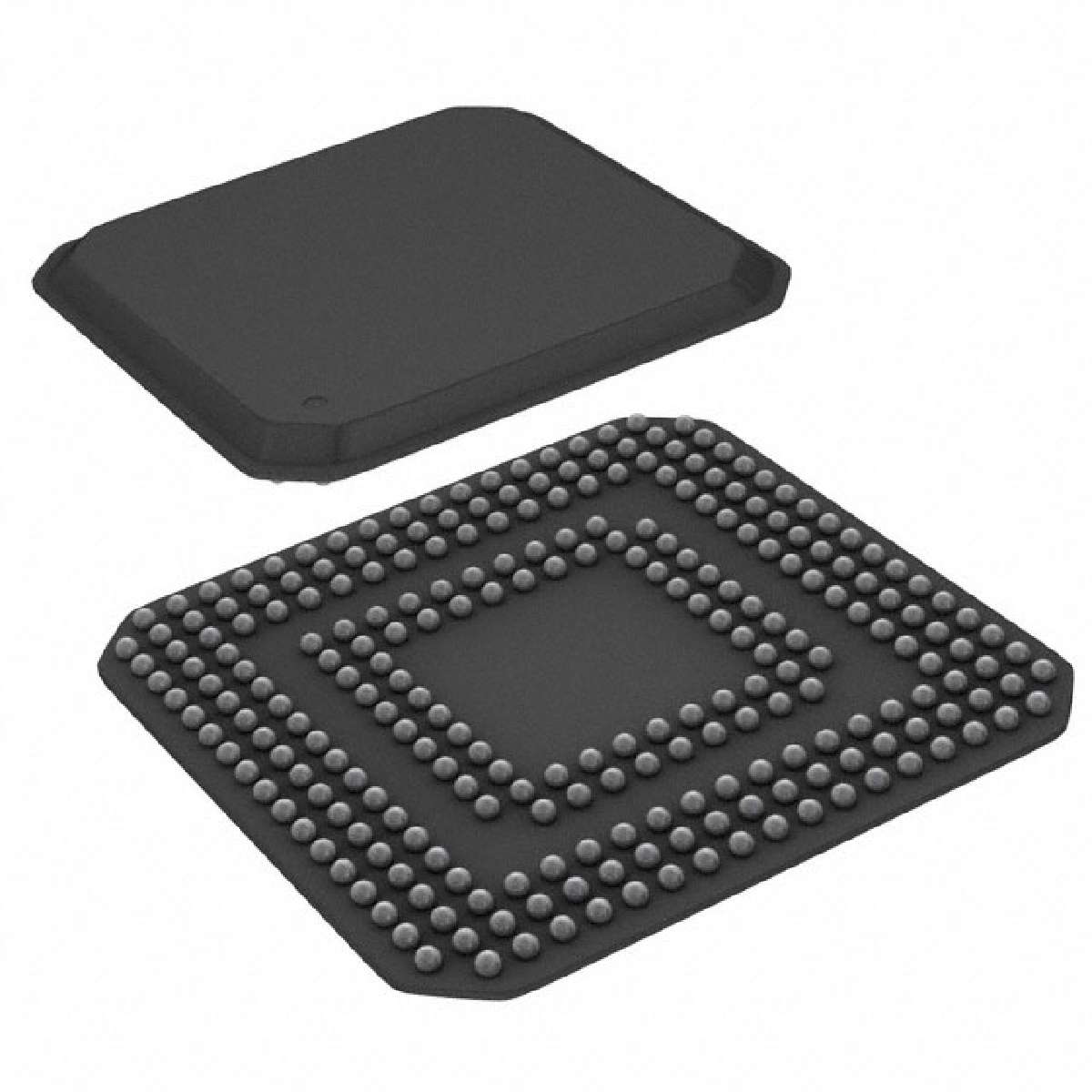

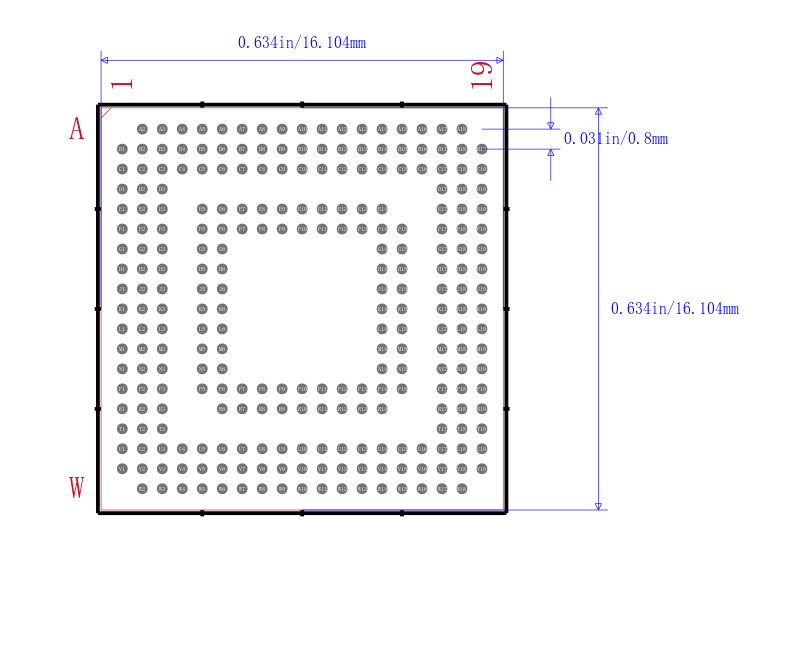

• 257-Ball MicroStar BGA GHK Suffix Package
