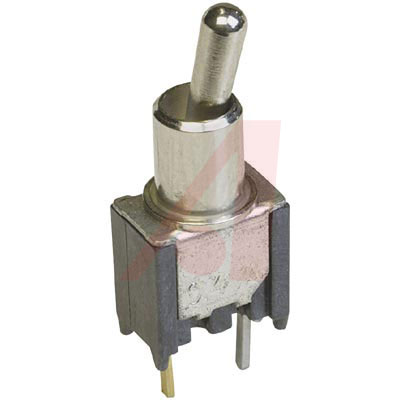

Switch Toggle ON None OFF SPST Short Baton Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount
TT Series subminiature toggle switches are offered with up to four poles and break before make contact timing. Terminals offered are THT, wire lug and wire wrap. Mounting styles are PCB and threaded bushing types.
艾睿:
Switch Toggle ON None OFF SPST Short Baton Lever PC Pins 20VAC 20VDC 0.4VA PC Mount
Allied Electronics:
Switch, Toggle; PC; 0.4 VA; 20 VDC; SPST; 20 Milliohms Max.; Gold over Nickel
安富利:
Switch Toggle ON None OFF SPST Short Baton Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount
Chip1Stop:
Switch Toggle ON None OFF SPST Short Baton Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount
触点电镀 Gold over Nickel
额定电压DC 20 V
额定电压AC 20 V
触点类型 SPST
易燃性等级 UL 94 V-0
针脚数 2
接触电阻 ≤20 MΩ
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 20 VDC
接触电阻Max 20 mΩ
安装方式 Through Hole
长度 8.1 mm
宽度 5.99 mm
高度 19.94 mm
颜色 Black
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
