具有 5 阶滤波器和 5.2V/V 增益的 3 通道 SDTV 视频放大器 8-SOIC -40 to 85
Fabricated using the revolutionary complementary silicon-sermanium SiGe BiCom3 process, the THS7315 is a low-power, single-supply, 3-V to 5-V 3-channel integrated video buffer. It incorporates a 5th-order Butterworth filter that is useful as a digital-to-analog converter DAC reconstruction filter or an analog-to-digital converter ADC anti-aliasing filter. The 8.5-MHz filter is a perfect choice for SDTV video, including Composite Video Baseband Signals CVBS, S-Video, YUV, GBR RGB, and YPBPR 480i/576i.
The THS7315 inputs can be either ac- or dc-coupled. The 230-mV output level shift allows for a full sync dynamic range at the output with 0 V input. The ac-coupled modes include a transparent sync-tip clamp option for CVBS, Y", and G"B"R" signals with bottom-level sync. AC-coupled biasing for C"/P"B/P"R channels can easily be achieved by adding an external resistor to VS+.
The THS7315 is the perfect choice for all output buffer applications. Its rail-to-rail output stage with 5.2-V/V gain allows for both ac and dc line driving, making it a perfect choice for DaVinci processors. The ability for each channel to drive two video lines, or 75- loading, allows for maximum flexibility as a video line driver. The 15.6-mA quiescent current at 3.3 V also makes it an excellent choice for USB-powered, portable, or other power-sensitive video applications

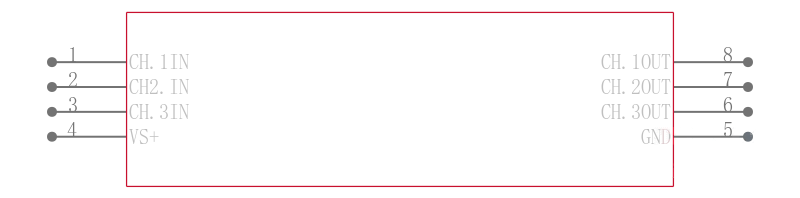

The THS7315 is available in a small SOIC-8 package that is lead-free and compliant with green requirements.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
THS7315D TI 德州仪器 | 当前型号 | 当前型号 |
THS7315DRG4 德州仪器 | 完全替代 | THS7315D和THS7315DRG4的区别 |
THS7313PW 德州仪器 | 功能相似 | THS7315D和THS7313PW的区别 |
