非常低的功率,负轨输入,轨到轨输出,全差动放大器 VERY LOW POWER, NEGATIVE RAIL INPUT, RAIL-TO-RAIL OUTPUT, FULLY DIFFERENTIAL AMPLIFIER
差分 放大器 电路 差分,满摆幅 16-TSSOP
得捷:
IC OPAMP DIFF 2 CIRCUIT 16TSSOP
立创商城:
THS4522IPWR
德州仪器TI:
Very low power dual channel rail-to-rail output fully differential amplifier
贸泽:
差分放大器 Lo Pwr dual channel R-R fully Diff amp
e络盟:
差分放大器, 2 放大器, 2 mV, 1.02 dB, 95 MHz, -40 °C, 85 °C
艾睿:
Increase functionality to your instrumentation with this general purpose amplifier THS4522IPWR OP amp from Texas Instruments. It has a minimum dual supply voltage of ±1.5 V and maximum of ±2.75 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device uses one or two power supplies. It has a single channel per chip.
安富利:
OP Amp Single GP R-R O/P ±2.75V/5.5V 16-Pin TSSOP T/R
Verical:
Op Amp Single Low Power Amplifier R-R O/P ±2.7V/5.4V 16-Pin TSSOP T/R
Win Source:
IC OPAMP DIFF 95MHZ RRO 16TSSOP
输出电流 ≤100 mA
供电电流 1.14 mA
电路数 2
通道数 2
针脚数 16
共模抑制比 80 dB
输入补偿漂移 2.00 µV/K
带宽 95 MHz
转换速率 490 V/μs
增益频宽积 95 MHz
输入补偿电压 2 mV
输入偏置电流 700 nA
可用通道 S, Q
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 145 MHz
增益带宽 95 MHz
共模抑制比Min 80 dB
电源电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 16

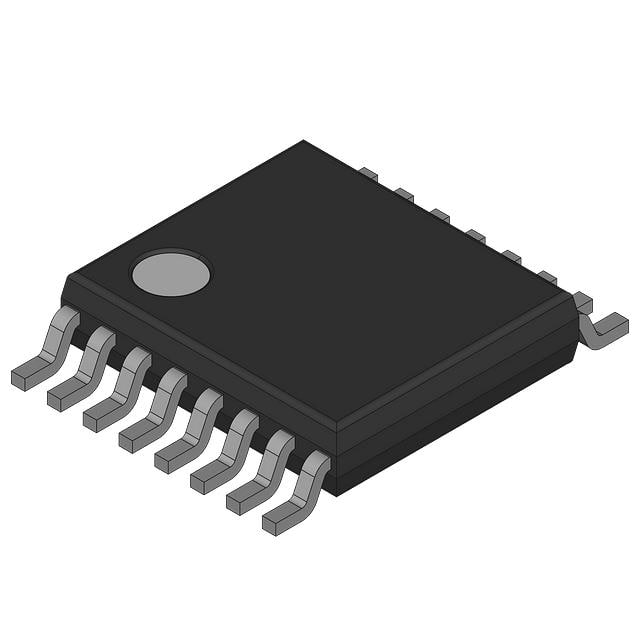

封装 TSSOP-16

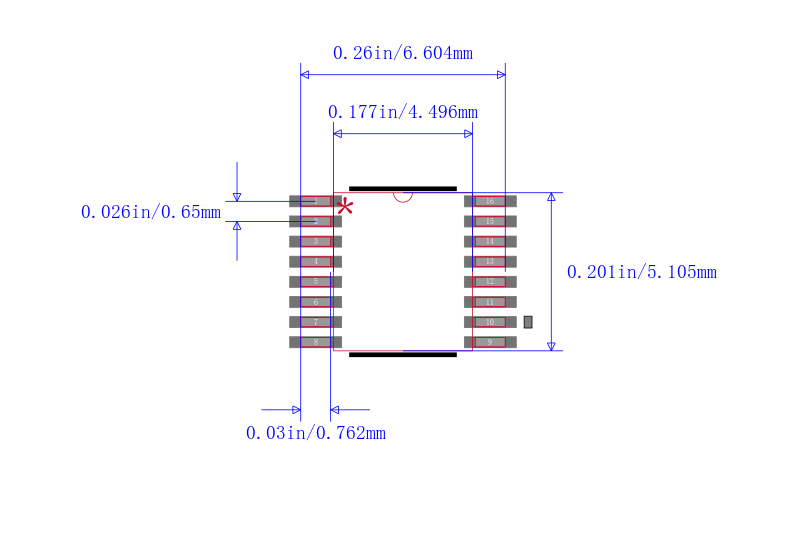

长度 5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
THS4522IPWR TI 德州仪器 | 当前型号 | 当前型号 |
THS4522IPW 德州仪器 | 类似代替 | THS4522IPWR和THS4522IPW的区别 |
