1.8V的输入/输出轨至轨低功耗运算放大器 1.8V input/output rail-to-rail low power operational amplifiers

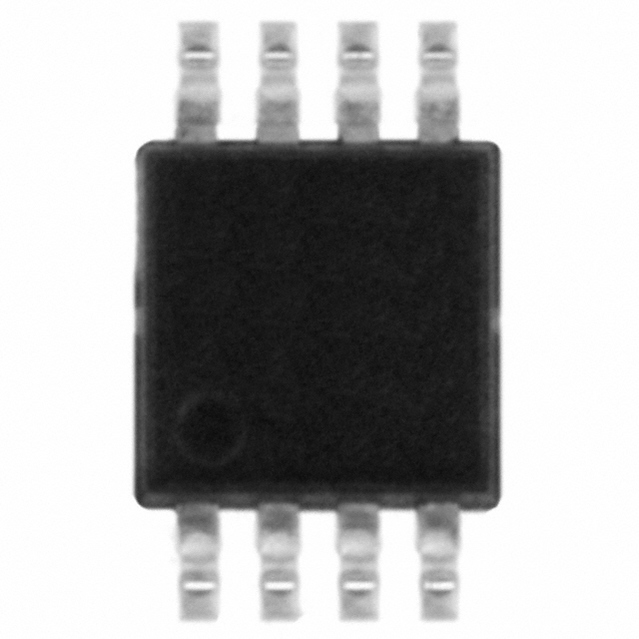

通用 放大器 电路 满摆幅 8-MiniSO
得捷:
IC OPAMP GP 2 CIRCUIT 8MINISO
贸泽:
运算放大器 - 运放 Dual Rail-to-Rail LP
艾睿:
The infinite open-loop gain, high input impedance and low output impedance of this general purpose amplifier TS1872IST OP amp from STMicroelectronics produces a large amount of gain. This op amp has a temperature range of -40 °C to 125 °C. This device uses a single power supply. It has 2 channels per chip.
输出电流 80mA @5V
供电电流 500 µA
电路数 2
耗散功率 190 mW
转换速率 540 mV/μs
增益频宽积 1.8 MHz
输入补偿电压 100 µV
输入偏置电流 70 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
共模抑制比Min 65 dB
安装方式 Surface Mount
引脚数 8
封装 TSSOP-8
长度 3 mm
宽度 3 mm
高度 0.85 mm
封装 TSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
