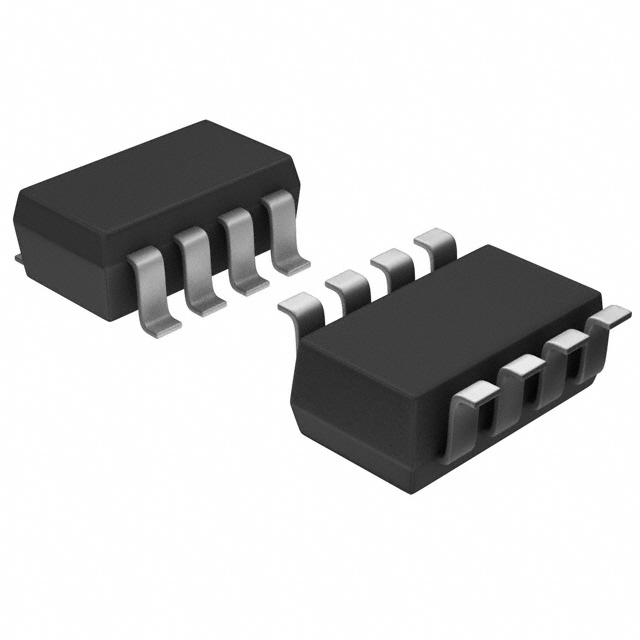

微功率( 60 μA ) ,宽带宽( 2.4 MHz)的CMOS运算放大器 MIcropower 60 μA, wide bandwidth 2.4 MHz CMOS op-amps
The infinite open-loop gain, high input impedance and low output impedance of this general purpose amplifier OP amp from STMicroelectronics produces a large amount of gain. This op amp has a temperature range of -40 °C to 125 °C. This device utilizes CMOS technology. It has 2 channels per chip. This device uses a single power supply.
得捷:
IC CMOS 2 CIRCUIT SOT23-8
贸泽:
运算放大器 - 运放 Micropower wide band width CMOS op-amps
艾睿:
OP Amp Dual GP R-R I/O 5.5V 8-Pin SOT-23 T/R
安富利:
OP Amp Dual GP R-R I/O 5.5V 8-Pin SOT-23 T/R
Chip1Stop:
OP Amp Dual GP R-R I/O 5.5V 8-Pin SOT-23 T/R
Verical:
OP Amp Dual GP R-R I/O 5.5V 8-Pin SOT-23 T/R
DeviceMart:
IC OP AMP RRIO MICROPWR SOT23-8
输出电流 72mA @5V
供电电流 60 µA
电路数 2
共模抑制比 60 dB
带宽 2.4 MHz
转换速率 1.10 V/μs
增益频宽积 2.4 MHz
输入补偿电压 3 mV
输入偏置电流 1 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 2.4 MHz
共模抑制比Min 60 dB
电源电压 1.5V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 SOT-23-8
高度 1.3 mm
封装 SOT-23-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TSV6392ILT ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TSV6292ILT 意法半导体 | 类似代替 | TSV6392ILT和TSV6292ILT的区别 |
OPA2349EA/250 德州仪器 | 功能相似 | TSV6392ILT和OPA2349EA/250的区别 |
OPA2349EA/3K 德州仪器 | 功能相似 | TSV6392ILT和OPA2349EA/3K的区别 |
