TLV2432CD

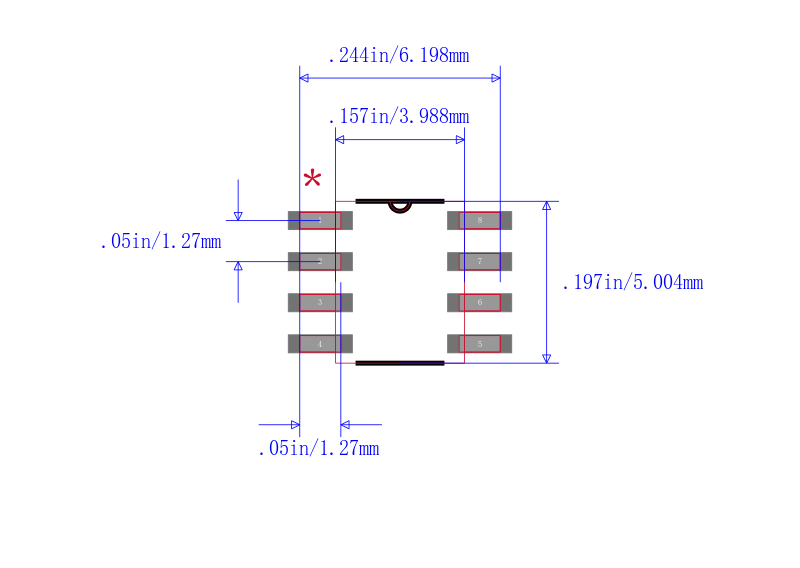

TEXAS INSTRUMENTS  TLV2432CD  运算放大器, 双路, 500 kHz, 2个放大器, 0.25 V/µs, 2.7V 至 10V, SOIC, 8 引脚

The is a dual wide-input-voltage Operational Amplifier with rail-to-rail output. The common-mode input voltage range for each device is extended over the typical CMOS amplifier making them suitable for a wide range of applications. In addition, this device do not phase invert when the common-mode input is driven to the supply rail. This satisfies most design requirements without paying a premium for rail-to-rail input performance. It also exhibits rail-to-rail output performance for increased dynamic range in single- or split-supply applications. This family is fully characterized at 3 and 5V supplies and is optimized for low-voltage operation. The TLV243x only requires 100µA typical of supply current per channel, making it ideal for battery-powered applications. The TLV243x also has increased output drive over previous rail-to-rail operational amplifier and can drive 600R loads for telecom applications.

.

Output swing includes both supply rails

.

No phase inversion

.

Macromodel included

.

18nV/√Hz at f=1kHz Typical low noise

.

1pA Typical low input bias current

.

125µA/channel Maximum very low supply current

.

600R Output drive

.

Green product and no Sb/Br
