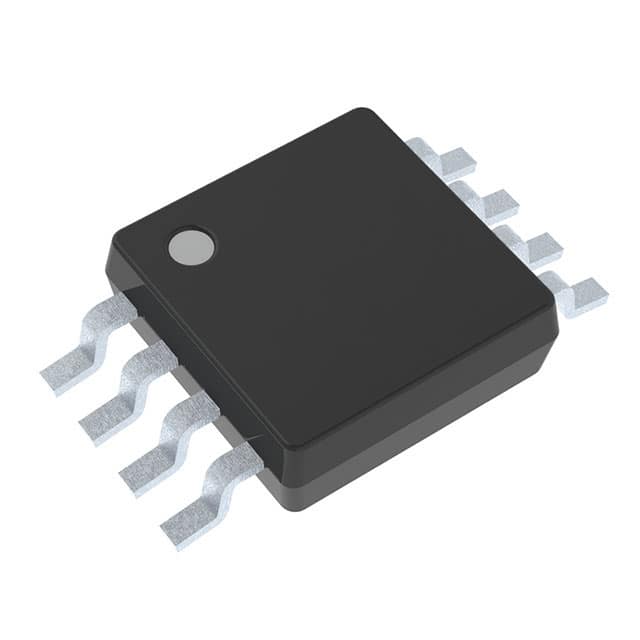

11uA/通道的 160kHz 轨到轨输出双路运算放大器 8-VSSOP
通用 放大器 2 电路 满摆幅 8-VSSOP
得捷:
IC OPAMP GP 2 CIRCUIT 8VSSOP
立创商城:
TLV27L2CDGKR
德州仪器TI:
Dual, 16-V, 160-kHz operational amplifier
艾睿:
To increase the amount of gain in your circuit use a multiple number of this general purpose amplifier TLV27L2CDGKR OP amp from Texas Instruments in a cascaded fashion. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±1.35 V and maximum of ±8 V. This op amp has a minimum operating temperature of 0 °C and a maximum of 70 °C. It has 2 channels per chip. This device uses one or two power supplies.
安富利:
OP Amp Dual GP R-R O/P ±8V/16V 8-Pin VSSOP T/R
Chip1Stop:
OP Amp Dual GP R-R O/P ±8V/16V 8-Pin VSSOP T/R
Verical:
Op Amp Dual Micropower Amplifier R-R O/P ±8V/16V 8-Pin VSSOP T/R
输出电流 0.4mA @2.7V
供电电流 7 µA
电路数 2
通道数 2
共模抑制比 71 dB
输入补偿漂移 1.10 µV/K
带宽 160 kHz
转换速率 60.0 mV/μs
增益频宽积 0.16 MHz
输入补偿电压 500 µV
输入偏置电流 1 pA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 0.16 MHz
共模抑制比Min 71 dB
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
封装 VSSOP-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLV27L2CDGKR TI 德州仪器 | 当前型号 | 当前型号 |
TLV27L2CDGK 德州仪器 | 类似代替 | TLV27L2CDGKR和TLV27L2CDGK的区别 |
TLV27L2IDGK 德州仪器 | 类似代替 | TLV27L2CDGKR和TLV27L2IDGK的区别 |
TLV27L2IDGKR 德州仪器 | 类似代替 | TLV27L2CDGKR和TLV27L2IDGKR的区别 |
