TIP122-BP

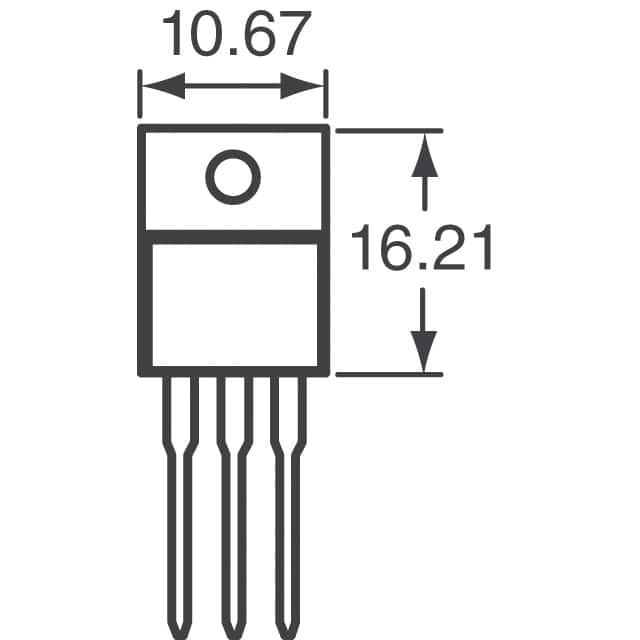

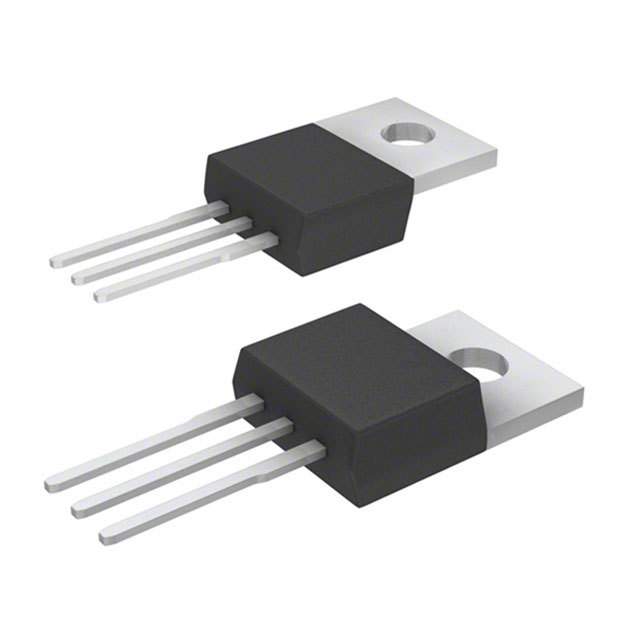

TO-220 NPN 100V 5A

- 双极 BJT - 单 NPN - 达林顿 - 通孔 TO-220

得捷:
TRANS NPN DARL 100V 5A TO220AB

艾睿:
Do you have a circuit where a higher current gain is required? Micro Commercial Components&s; NPN TIP122-BP Darlington transistor can help! This Darlington transistor array&s;s maximum emitter base voltage is 5 V, while its maximum base emitter saturation voltage is 2.5@3A V. This product&s;s maximum continuous DC collector current is 5 A, while its minimum DC current gain is 1000@0.5A@3 V|1000@3A@3V. It has a maximum collector emitter saturation voltage of 2@12mA@3A|4@20mA@5A V. Its maximum power dissipation is 65000 mW. It has a maximum collector emitter voltage of 100 V and a maximum emitter base voltage of 5 V. This Darlington transistor array has an operating temperature range of -55 °C to 150 °C.

Chip1Stop:
Trans Darlington NPN 100V 5A 3-Pin3+Tab TO-220

DeviceMart:
TRANS DARL NPN 5A 100V TO-220
