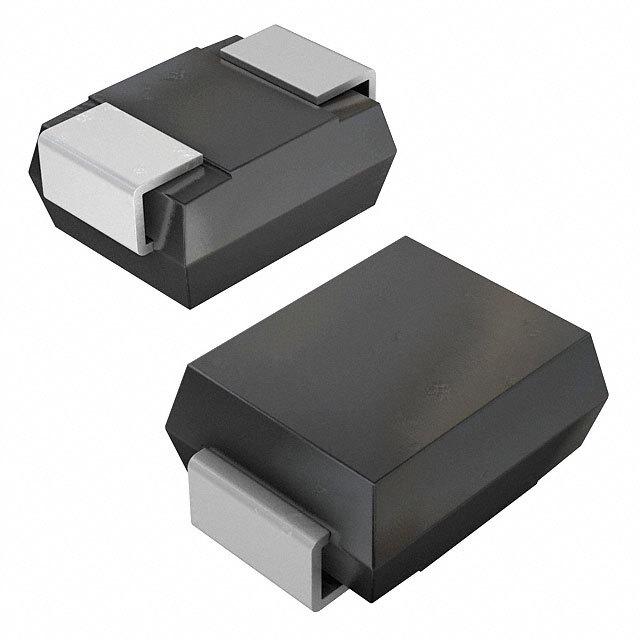

ESD 抑制器/TVS 二极管 600W 51V AEC-Q101 5% Bi-Directional
70.1V 夹子 8.7A Ipp TVS - 表面贴装型 DO-214AA(SMBJ)
立创商城:
双向 Vrwm:43.6V 600W
得捷:
TVS DIODE 43.6VWM 70.1VC DO214AA
贸泽:
ESD 抑制器/TVS 二极管 600W 51V AEC-Q101 5% Bi-Directional
艾睿:
If you&s;re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this TPSMB51CA TVS diode from Littelfuse is perfect for you. This device&s;s maximum clamping voltage is 70.1 V and minimum breakdown voltage is 48.5 V. Its test current is 1 mA. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 600 W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
Verical:
TVS Diode Single Bi-Dir 43.6V 600W Automotive 2-Pin SMB T/R
工作电压 51 V
电容 500 pF
击穿电压 53.6 V
正向电压 3.5 V
耗散功率 5 W
钳位电压 70.1 V
测试电流 1 mA
最大正向浪涌电流(Ifsm) 100 A
脉冲峰值功率 600 W
最小反向击穿电压 48.5 V
击穿电压 48.5 V
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA-2
长度 5.59 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA-2
工作温度 -65℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPSMB51CA Littelfuse 力特 | 当前型号 | 当前型号 |
P6SMBJ51CA 力特 | 类似代替 | TPSMB51CA和P6SMBJ51CA的区别 |
P6SMB51CA 力特 | 功能相似 | TPSMB51CA和P6SMB51CA的区别 |
