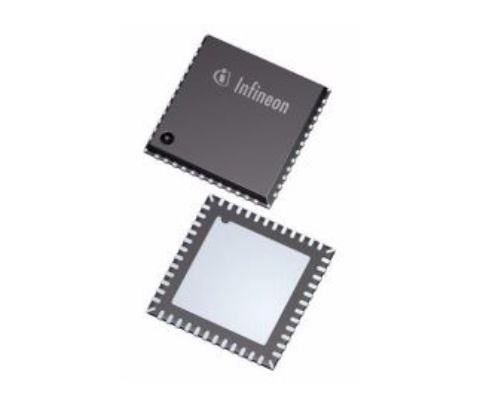

TLE9879QXA40

Motor / Motion / Ignition Controllers & Drivers EMBEDDED POWER

Description:

The is part of the TLE987x product family. The TLE9879QXA40 is a single chip 3-Phase motor driver that integrates the industry standard ARM® Cortex™ M3 core, enabling the implementation of advanced motor control algorithms such as field-oriented control. It includes six fully integrated NFET drivers optimized to drive a 3-Phase motor via six external power NFETs, a charge pump enabling low voltage operation and programmable current along with current slope control for optimized EMC behavior. Its peripheral set includes a current sensor, a successive approximation ADC synchronized with the capture and compare unit for PWM control and 16-bit timers. A LIN transceiver is also integrated to enable communication to the device along with a number of general purpose I/Os. It includes an on-chip linear voltage regulator to supply external loads. It includes an on-chip linear voltage regulator to supply external loads.

It is a highly integrated automotive qualified device enabling cost and space efficient solutions for mechatronic BLDC motor drive applications such as pumps and fans.

Summary of Features:

.

Six current programmable Drivers with charge pump for N-Channel MOSFET

.

Integrated LIN transceiver compatible with LIN 2.2 and SAEJ2602

.

Two Full duplex serial interface UART with LIN support

.

Two Synchronous serial channel SSC

.

On-chip OSC and PLL for clock generation

.

One high voltage monitoring input with wake up functionality

.

High speed Operational amplifier for motor current sensing via shunt

.

Measurement unit:

.

8-bit ADC module with 10 multiplexed inputs

.

10-bit ADC module with 8 multiplexed inputs, 5 external Analog inputs

.

On chip temperature and battery voltage measurement unit

.

Independent Programmable window watchdog

.

5V/1.5V Internal supplies

.

External Supply VDDEXT: 5V+/-2% @ 20mA

.

Power saving modes:

.

MCU slow-down Mode

.

Sleep Mode

.

Stop Mode

.

Cyclic wake-up Sleep Mode

## Features of the Microcontroller:

.

32 bit ARM Cortex M3 Core, up to 40 MHz clock frequency

.

128 kByte flash memory for code and data

.

32 kByte Boot ROM memory in code space used for boot code and IP storage

.

6 kByte RAM memory

.

Harvard architecture

.

Thumb®-2 Instruction Set and hardware divide and multiplication unit

.

Four 16-Bit timers

.

Capture/compare unit for PWM signal generation CCU6 with 2 x 16-bits timers

## General Characteristics:

.

Operating supply voltage Vs=5.5 to 28V, maximum rating 40V

.

Extended operating range Vs=3.0 to 28V, MCU / Flash fully functional

.

ESD performance:

.

up to 2kV / handling on all pins

.

4kV @ HV inputs

.

6kV @ LIN pin

.

Overvoltage device clamp load dump ruggedness up to 40V

.

Wide operating temperature range: Tj:-40°C up to 150°C
