Digital Logic Isolation
Line Receiver
Power Supply Control
Switching Power Supply
Transistor Inverter
The TOSHIBA and TLP2531 dual photocouplers consist of a pair of GaAℓAs light emitting diode and integrated photodetector. This unit is 8−lead DIP.
Separate connection for the photodiode bias and output transistor collectors improve the speed up to a hundred times that of a conventional phototransistor coupler by reducing the base−collector capacitance.
• TTL compatible
• Switching speed: tpHL=0.3μs, tpLH=0.3μstyp. @RL=1.9kΩ
• Guaranteed performance over temp: 0~70°C
• Isolation voltage: 2500 Vrmsmin.
• UL recognized: UL1577, file no. E67349
输入电压DC 1.65 V
电路数 2
通道数 2
针脚数 8
正向电压 1.65 V
耗散功率 45 mW
数据速率 1.00 Mbps
隔离电压 2.5 kV
正向电压Max 1.7 V
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 45 mW
安装方式 Through Hole
引脚数 8

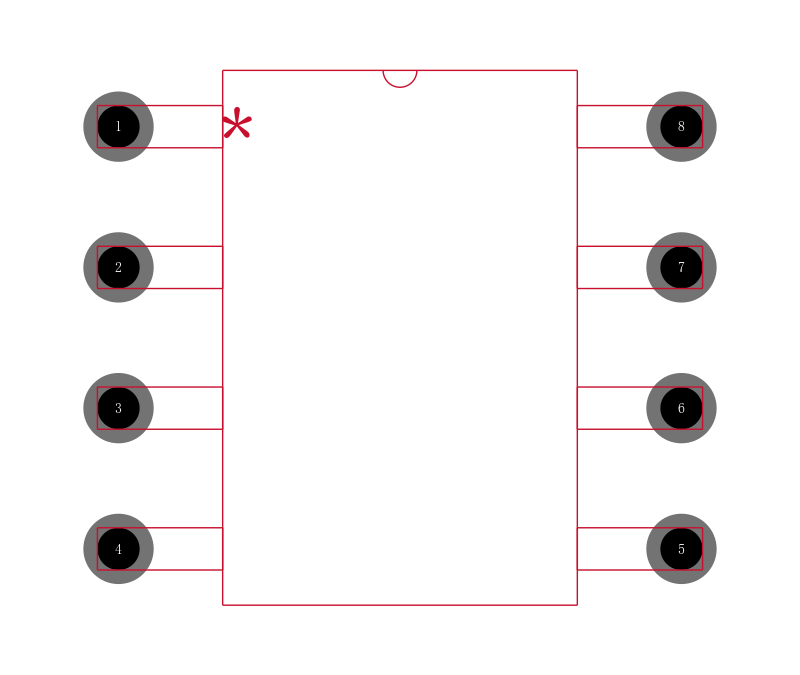

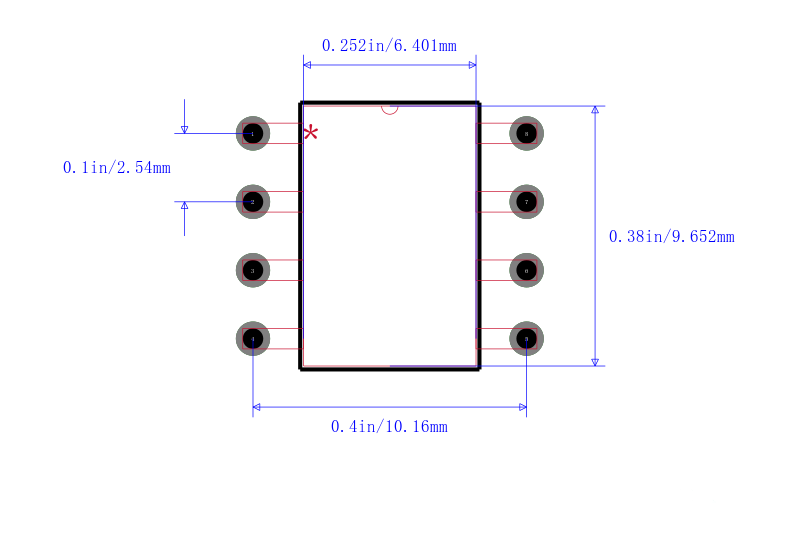

封装 DIP-8
封装 DIP-8
产品生命周期 Obsolete
包装方式 Each
制造应用 Measurement instrumentation, Communication interface, PLC
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TLP2530 Toshiba 东芝 | 当前型号 | 当前型号 |
HCPL-4504-000E 博通 | 功能相似 | TLP2530和HCPL-4504-000E的区别 |
HCPL-0501-000E 博通 | 功能相似 | TLP2530和HCPL-0501-000E的区别 |
HCPL-0730-000E 博通 | 功能相似 | TLP2530和HCPL-0730-000E的区别 |
