高速运算放大器 2GHz Current Feedback Amplifier
The current feedback amplifier OP amp from Texas Instruments is essential for building signal processing circuits, control circuits, and instrumentation. Its maximum power dissipation is 1710 mW. Its typical dual supply voltage is ±5 V, with a minimum of ±3.3 V and maximum of ±7.5 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device is made with bicom-ii technology. This device uses one or two power supplies. It has 2 channels per chip.
供电电流 15 mA
电路数 2
通道数 2
耗散功率 1710 mW
共模抑制比 60 dB
输入补偿漂移 10.0 µV/K
带宽 2 GHz
转换速率 9.00 kV/μs
增益频宽积 2000 MHz
输入补偿电压 700 µV
输入偏置电流 14 µA
可用通道 D
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 2 GHz
增益带宽 2000 MHz
耗散功率Max 1710 mW
共模抑制比Min 60 dB
电源电压Max 15 V
电源电压Min 6.6 V
安装方式 Surface Mount
引脚数 8

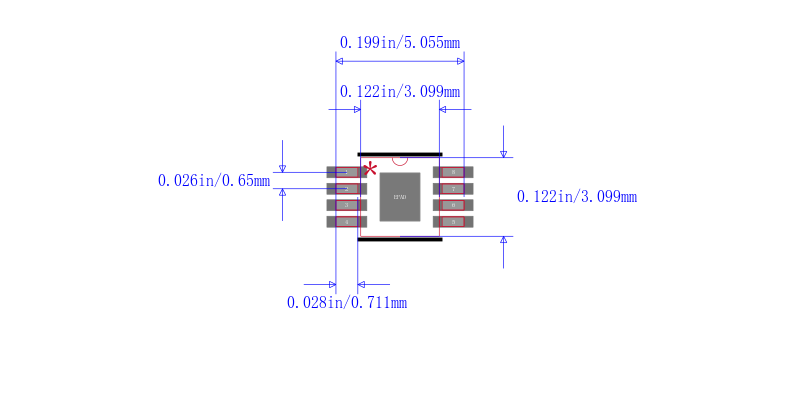

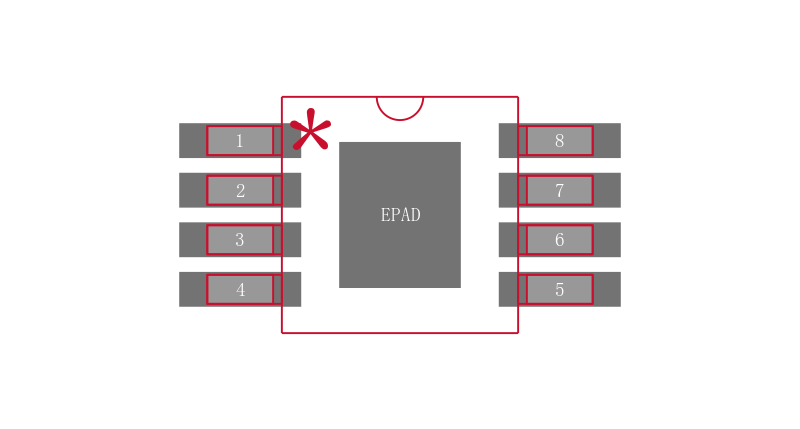

封装 PowerPad-MSOP-8
长度 3 mm
宽度 3 mm
高度 1.02 mm
封装 PowerPad-MSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
THS3202DGNG4 TI 德州仪器 | 当前型号 | 当前型号 |
THS3202DGN 德州仪器 | 完全替代 | THS3202DGNG4和THS3202DGN的区别 |
AD8056ARZ 亚德诺 | 功能相似 | THS3202DGNG4和AD8056ARZ的区别 |
AD8042ARZ 亚德诺 | 功能相似 | THS3202DGNG4和AD8042ARZ的区别 |
