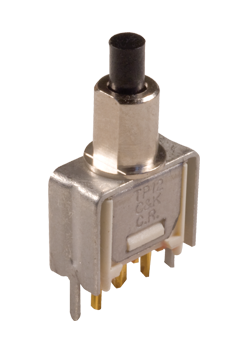

Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC Momentary Contact PC Pins Bracket Mount/Through Hole
Tiny Pushbutton Switches
立创商城:
TP12SH9V3QE
贸泽:
Pushbutton Switches Pushbutton
艾睿:
Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC Momentary Contact Bracket Mount/Through Hole PC Pins Bulk
Allied Electronics:
Switch Push Button ON Mom SPDT Round Plunger 1A 12
安富利:
Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC Momentary Contact PC Pins Bracket Mount/Through Hole
Verical:
Switch Push Button ON Mom SPDT Round Plunger 1A 120VAC 28VDC Momentary Contact Bracket Mount/Through Hole PC Pins Bulk
Newark:
# C & K COMPONENTS TP12SH9V3QE Pushbutton
MASTER:
Tiny Pushbutton Switches
Online Components:
Tiny Pushbutton Switches
Electro Sonic:
Tiny Pushbutton Switches
额定电压DC 28 V
额定电压AC 120 V
额定电流 1 A
排数 1
额定电流Max 1 A
额定功率Max 0.4VA @20VAC, 20VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 10.57 mm
高度 18.55 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
ECCN代码 EAR99
HTS代码 8536509031
