TL22DDAW015D

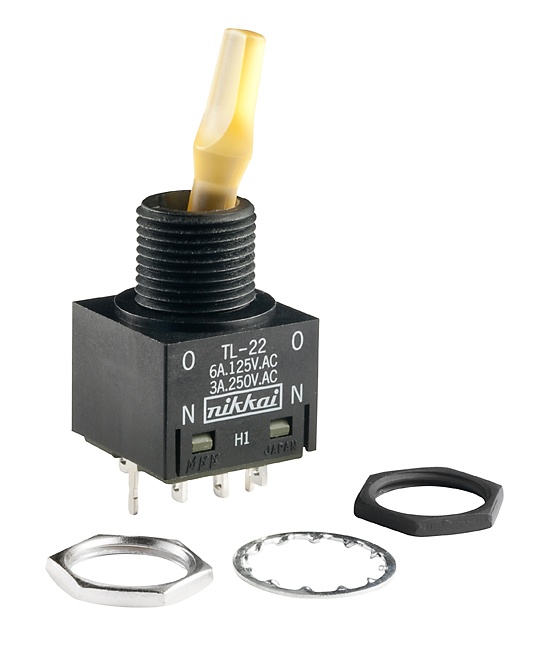

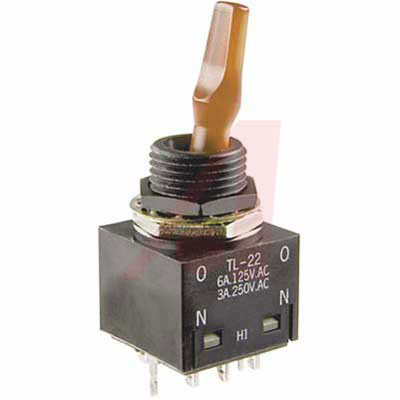

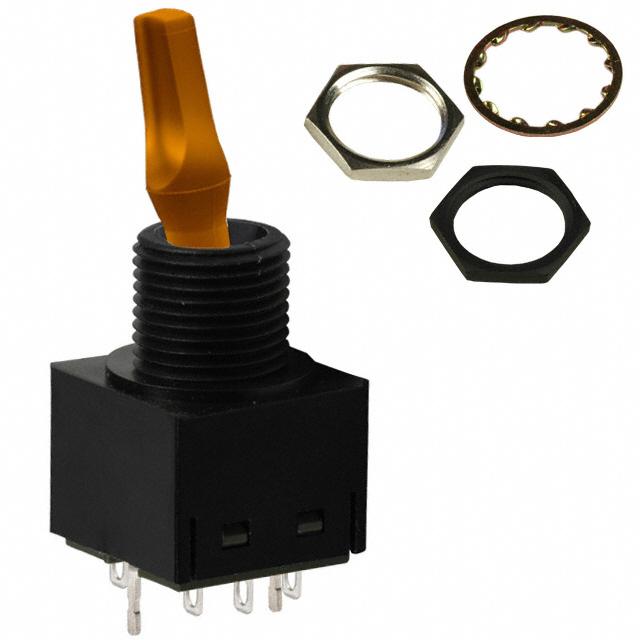

NKK SWITCHES  TL22DDAW015D  拨动开关, DPDT, 6A, 125VAC

Fully illuminated toggles with bright or super bright LED illumination. Made with antistatic material that withstands 20 kilovolts electrostatic discharge, bushing mount, interior O-ring, solder lug terminals. 12 mm dia. threaded bushing.

.

*Resistive Electrical Capacity:** 6 A @ 125 VAC or 3 A @ 250 VAC. **Dielectric Strength:** 1000 VAC min. between contacts for 1 minute min. **Electrical Life:** 25,000 operations min. **Nominal Operation Force:** 1.9 Newtons. **Operation Temperature:** –10°C through +50°C. **Maximum Panel Thickness:** 0.157". **Hardware:** 1 black hex nut, 1 hex nut and 1 lockwasher.

**Features:**

* Fully Illuminated Toggles

* Bright or Super Bright LED Illumination

* Meets IP65 of IEC60529 When Used with AT401P O-Ring
